产品概述
描述

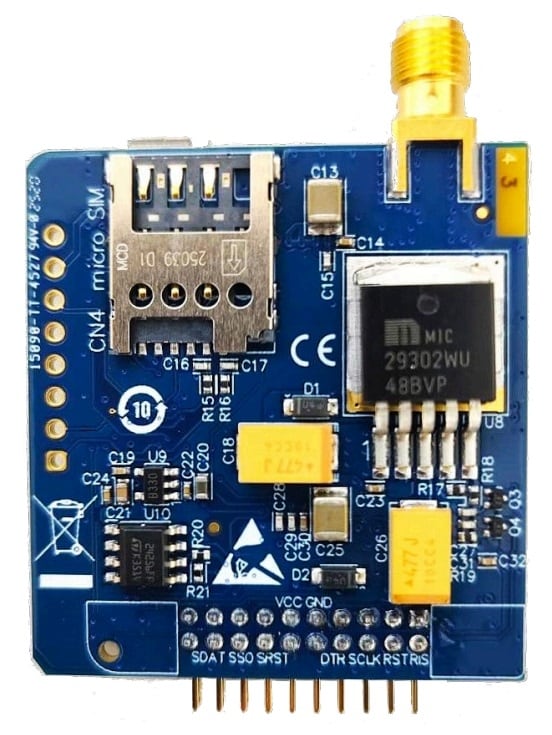

The STEVAL-ST4SIMV1 expansion board adds cellular connectivity to evaluation boards hosting the STMod+ expansion connector.
It embeds a cellular modem compatible with LTE Cat M1 & Cat NB1 & EGPRS netowrks and with an initial connectivity provided by a trusted telecom operator partner..
The ST4SIM-300M is ST's eSIM compliant with the GSMA SGP.32 specification. The new standard enables the remote switching of telecom operators.
The expansion board can be used only with the furnished antenna and is compatible with all STMicroelectronics Discovery kits featuring an STMod+ connector, such as the B-U585I-IOT02A.
It is also compatible with any STMod+ compatible evaluation board.
The package, combined with any compatible evaluation board, represents an ideal development platform for cellular and cloud technology-based solutions.
-
所有功能
- ST4SIM-300M expansion for evaluation boards hosting the STMod+ connector
- ST4SIM-300M compliant to the GSMA SGP.32 eSIM for IoT
- Embedded Quectel BG96MA-128-SGN FCC and IC certified LTE module (FCC ID: XMR201707BG96 and IC: 10224A-201709BG96)
- Modem reset red LED and modem signaling green LED
- Switchable SIM interface, eSIM, and Micro-SIM
- Pulse SMA antenna for the following frequency ranges: 824/900/1800/1900/2100 MHz
- Modem firmware can be easily upgraded through the dedicated micro-B USB connector
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 16 Dec 2025 | 16 Dec 2025 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 16 Dec 2025 | 16 Dec 2025 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 16 Dec 2025 | 16 Dec 2025 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ST4SIMV1 | 评估 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-ST4SIMV1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
