STEVAL-SMARTAG1

批量生产
Design Win

NFC动态标签传感器节点评估板

下载数据摘要 Order Direct

产品概述

描述

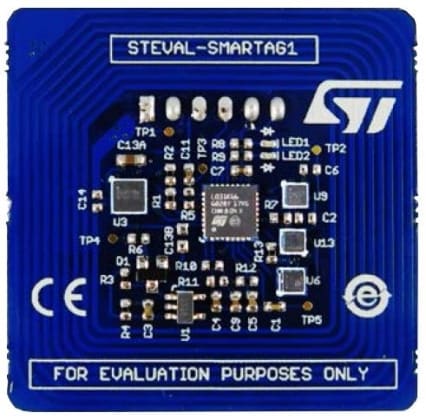

This smart and flexible NFC Tracker evaluation board with sensors includes a comprehensive software library and a sample application to monitor and log sensor data over NFC from an Android or iOS device.

The ultra-low power sensor node evaluation board mounts an ST25DV NFC Tag, an STM32L0 ARM Cortex M0+, environment sensors (temperature, humidity and pressure) and motion (accelerometer) sensor.

The evaluation board features NFC harvesting to supply power and a battery cradle for a CR2032 battery.

  • 所有功能

    • ST25DV64K dynamic NFC tag solution based on 64K-bit (8K-Byte) EEPROM and with I²C interface, Fast Transfer Mode and Energy Harvesting features
    • STM32L031K6 ultra-low-power ARM Cortex-M0+ MCU running at 32 MHz with 32-Kbytes Flash and 8-Kbytes RAM
    • LIS2DW12 ultra-low-power high-performance three-axis linear accelerometer
    • LPS22HB ultra-compact piezo-resistive absolute pressure sensor which functions as a digital output barometer: 260-1260 hPa
    • HTS221 capacitive digital sensor for relative humidity and temperature
    • STLQ015 low drop linear regulator power management
    • CR2032 Battery powered (not included)
    • STM32Cube function pack (FP-SNS-SMARTAG1)
    • Android (Google Play) and iOS demo apps (ST SmarTag)
    • Suitable for the following applications:
      • Internet of Things
      • Supply Chain and Cold-Chain Management
      • Smart building, home and city
      • Retail and apparel
      • Smart packaging
      • Medical and pharmaceutical
      • Batteryless sensing
      • Smart agriculture (soil control, animal tracking, etc.)
