STEVAL-POE005V1

批量生产
Design Win

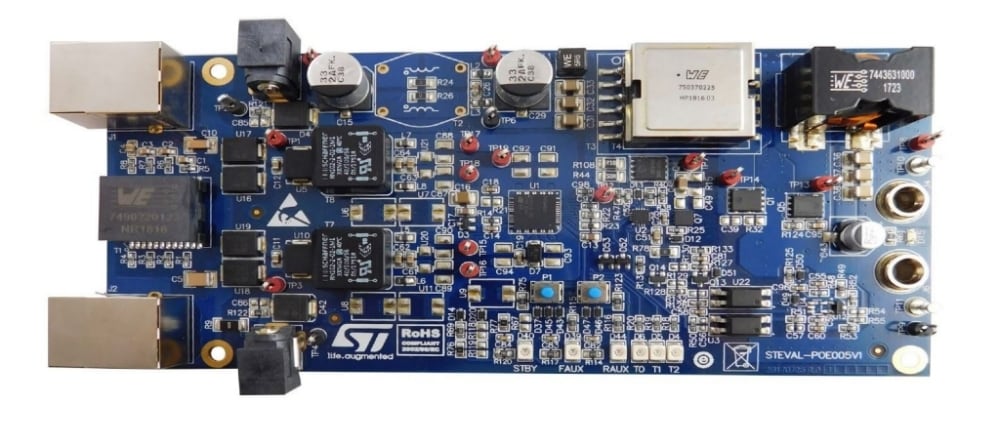

12V/8A有源钳位正向转换器,以太网供电(PoE),符合IEEE 802.3bt标准的参考设计

下载数据摘要 Order Direct

产品概述

描述

This reference design represents a 12 V, 8 A converter solution ideal for various applications including building safety and security or surveillance, with a PoE-PD interface and a DC-DC active clamp forward converter.

The PoE-PD interface is based on the PM8805 system in package device with two active bridges and an IEEE 802.3bt compliant Powered Device (PD) interface. It can be used in all medium-to-high power 2P and 4P high efficiency PoE and PoE+ applications.

The DC-DC active clamp forward converter is designed around the PM8804 PWM controller, which is an integrated solution for smart and efficient 48 V converters, featuring a programmable oscillator for the switching frequency, adjustable slope compensation, dual complementary low-side drivers with programmable dead time, programmable soft start, soft turn off and a programmable current sense blanking time.

  • 所有功能

    • Features of the PM8805 PoE-PD interface:
      • System in package integrating a double active bridge, a hot-swap MOSFET and a PoE-PD
      • Supports legacy high power, 4-pair applications
      • 100 V N-ch MOSFETs with 0.2 Ω total path resistance for each active bridge
      • Identifies which kind of PSE (standard or legacy) is connected to, and provides successful IEEE802.3 af /at /bt classification indication as combination of the T0, T1 and T2 signals (open drain)
      • Smart operational mode selection through the STBY, FAUX and RAUX control signals
      • QFN 56 8x8mm package with 43 pins and 6 exposed pads
    • Features of the PM8804 PWM controller:
      • PWM peak current mode controller
      • Input operating voltage up to 75 V
      • Internal high voltage start up regulator with 20 mA capability
      • Programmable fixed frequency up to 1 Mhz
      • Soft start up with adjustable time
      • Soft turn off (optionally disabled)
      • Dual 1 APK, low side complementary gate drivers
      • GATE2 optionally turned off for reduced consumption
      • 80% maximum duty cycle with internal slope compensation
      • QFN 16 3x3mm package with exposed pad

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-POE005V1
批量生产
CARD 工业 Ecopack2 Yes

STEVAL-POE005V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
