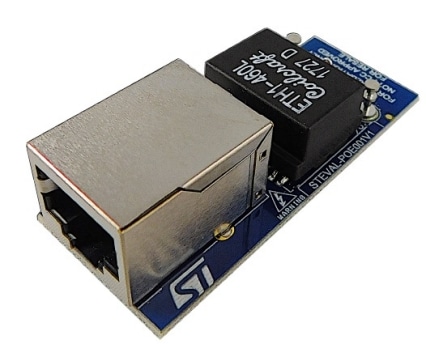

STEVAL-POE001V1

批量生产
Design Win

以太网供电(PoE)- 符合IEEE 802.3bt标准的接口参考设计

下载数据摘要 Order Direct

产品概述

描述

This reference design integrates a high power standard PoE-PD interface compliant with the third generation IEEE 802.3bt PoE standard, able to support applications up to 100 W.

The PoE-PD interface is based on the PM8805 system in package featuring two embedded active bridges with driving circuitry, a charge pump to drive the high side MOSFETs, a hot swap MOSFET and a standard single-signature interface compliant with IEEE 802.3bt, including detection, classification, UVLO and inrush current limitation.

The device implements IEEE 802.3bt physical layer classification schemes to signal successful PSE type identification to the system: it identifies a 4-pair PSE by monitoring the Ethernet cable pairs and providing the system with a dedicated matrix of Tx signals.

The PM8805 is suitable for building the interface for PoE switch mode power supplies for maximum conversion efficiency, with a PGD signal that can be used to enable downstream DC-DC converters or LED drivers with suitable electrical parameters.

  • 所有功能

    • System in package including a dual active bridge, a hot swap MOSFET and a PoE-PD interface
    • Robust 100V N-ch MOSFETs with 0.2 Ω total path resistance for each active bridge
    • Robust 100 V, 0.1 Ω high side N-ch hot swap MOSFET
    • PoE-PD single-signature interface compliant with IEEE 802.3bt
    • Detection and support of high power, 4-pair applications
    • Identifies which kind of PSE (standard or legacy) it is connected with, and provides successful IEEE 802.3af/at/bt classification indication through combination of the T0, T1 and T2 signals (open drain)
    • Programmable classification current with 3.3 ms delay
    • Advanced energy-saving MPS timings
    • Two step hot swap current protection: DC with 1 ms delay and overload with 10 µs delay
    • Startup phase (pre-charge of the output capacitor), performed using an internally limited current source
    • PGD signal (open drain) to enable an external PWM controller
    • Thermal shutdown protection
    • RoHS compliant
    • WEEE compliant

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-POE001V1
批量生产
CARD 工业 Ecopack2 Yes

STEVAL-POE001V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
