产品概要
描述

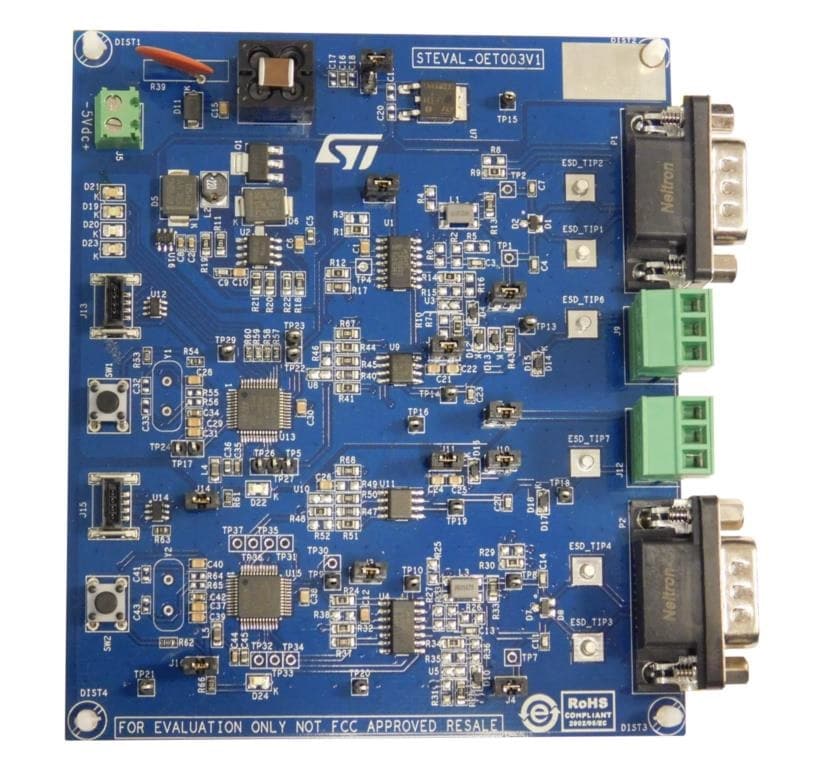

This demonstration tool is designed to provide an easy way to evaluate the robustness of ESD diodes developed for the automotive environment. It is based on a master-slave structure on the same board using two STM8AF528.
The microcontrollers communicate with each other via a communication loop based on LIN/CAN protocol. Communication flow status is indicated by four onboard LEDs. The LIN and CAN bus interfaces use four transceivers and are supplied by the step-up converter.
-
性能一览
- Input voltage 5 V
- 12 V output, step-up converter for transceiver supply voltage
- LIN transceiver
- CAN transceiver
- Automotive-grade ESD protection
- IEC61000-4-2 compatibility
