产品概述
描述

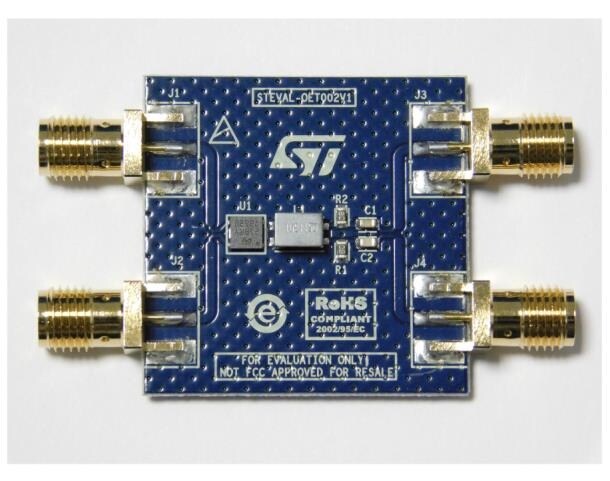

The STEVAL-OET002V1 is a medium-dependent interface (MDI) board which includes the EMIF02-01OABRY filter, in compliance with BroadR-Reach™ specifications for EMI, ESD and differential impedance. BroadR-Reach™ (BRR) is an Ethernet, two unshielded twisted pair (UTP) wire protocol for data communication.
The STEVAL-OET002V1 board is able to filter parasitic and undesirable common and differential signals.
-
所有功能
- Includes the EMIF02-01OABRY highly integrated solution designed to suppress EMI noise and protect against ESD
- Attenuation profile compliant with BroadR Reach™ requirements, from - 40 °C to 125 °C
- Compliant with ISO10605, ISO7637-3 standards
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 04 Oct 2016 | 04 Oct 2016 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 2.0 | 04 Oct 2016 | 04 Oct 2016 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 04 Oct 2016 | 04 Oct 2016 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-OET002V1 | NRND | CARD | 工业 | Ecopack2 | - | - | - | |
