产品概要
描述

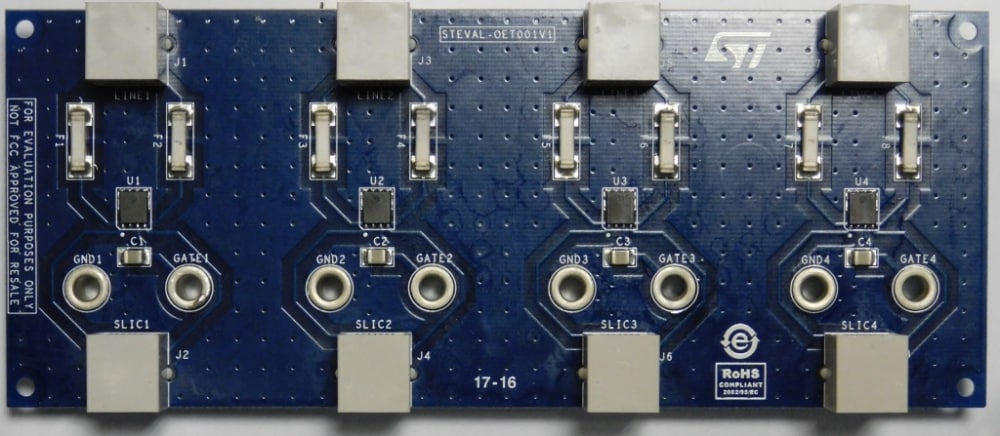

The STEVAL-OET001V1 board is designed to validate lightning protection for SLIC transceivers. The maximum peak pulse current for different waveform is given in the LCP154DJF datasheet.
The STEVAL-OET001V1 is able to protect 4 lines; several boards can be used if the number of lines is higher.
The STEVAL-OET001V1 board specifications comply with ITU-T K20/21/45 and GR1089-Core associated with Cooper Bussmann Telecom Circuit Protector fuse TCP 1.25 A.
-
性能一览
- 4 line protection for SLIC transceivers
- Compliant with ITU-T K20/21/45 and GR1089-Core
- Programmable transient suppressor
- RoHS compliant
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 16 Aug 2016 | 16 Aug 2016 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 16 Aug 2016 | 16 Aug 2016 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 16 Aug 2016 | 16 Aug 2016 |
