IIS3DWB10IS evaluation kit based on ultrawide bandwidth, 3-axis digital vibration sensor with ISPU

描述

The STEVAL-MKI253KA evaluation kit is based on the IIS3DWB10IS 3-axis digital vibration sensor with ISPU.

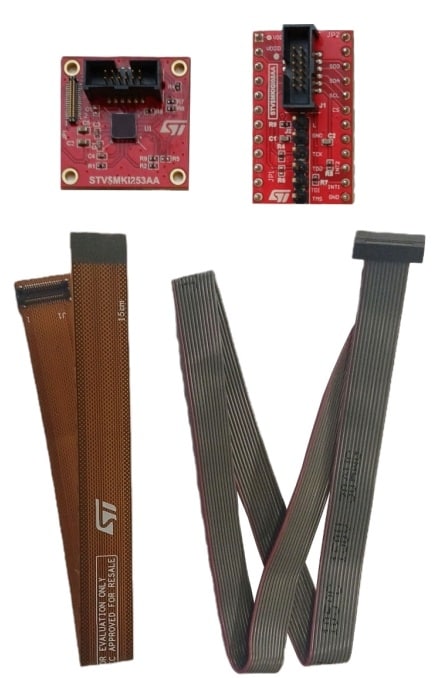

The kit includes the STEVAL-MKI253A main sensing board, which features a square printed circuit board (PCB) and mounts the IIS3DWB10IS 3-axis digital vibration sensor. It also includes the STEVAL-MKIGI08A adapter board, which enables compatibility with the STEVAL-MKI109D through a DIL24 interface.

A flat cable is provided to connect the STEVAL-MKI253A to the STEVAL-MKIGI08A. Additionally, a flex PCB (STEVAL-FLTCB05) is included to connect the STEVAL-MKI253A to other boards, such as the X-NUCLEO-IKS5A1.

The presence of the square PCB allows placing the sensor directly in the system where the measurement should be performed, which could be in a different position from the main board. The IIS3DWB10IS is soldered exactly in the center of the board.

The STEVAL-MKI253KA evaluation kit is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.

After the evaluation, the adapter board can also be plugged in other boards for development and prototype. The MEMS Studio graphical user interface, or dedicated software routines for customized applications can be used for configuration and communication with the sensor.
