产品概述
描述

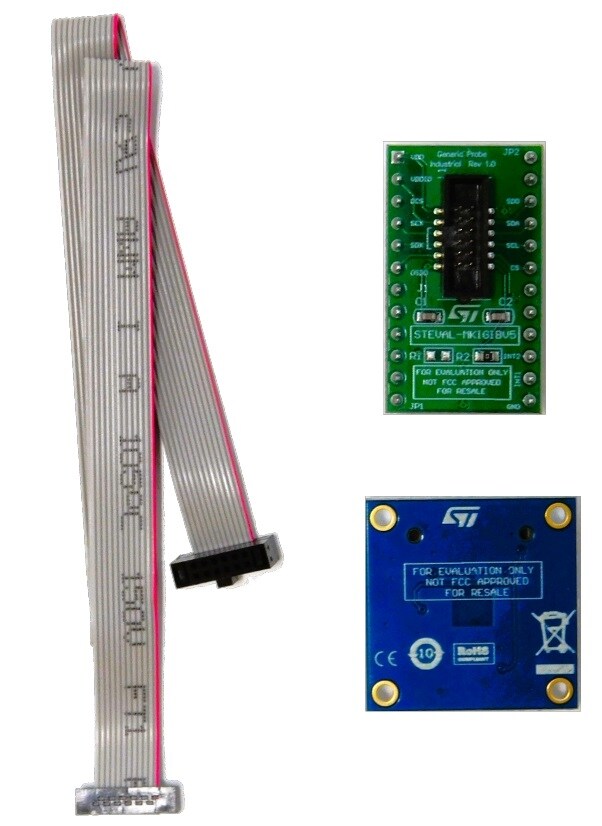

The STEVAL-MKI252KA evaluation kit is based on IIS3DWBG1 3-axis digital vibration sensor, which is connected through flat cable to a generic adapter board (STEVAL-MKIGIBV5) to make it compatible with the STEVAL-MKI109D.
The presence of this square PCB ensures to put the sensor board on the system must be measured via provided adhesive.
The device IIS3DWBG1 is soldered exactly in the center of the board.
The STEVAL-MKIGIBV5 can be plugged into a standard DIL 24 socket. The kit provides the complete IIS3DWBG1 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.
After the evaluation, the adapter board can also be plugged in other boards for development and prototype.
The MEMS Studio graphical user interface, or dedicated software routines for customized applications can be used for configuration and communication with the sensor.
-
所有功能
- User-friendly IIS3DWBG1 board
- Complete IIS3DWBG1 pinout for a standard DIL 24 socket
- Fully compatible with STEVAL-MKI109D motherboard
- RoHS compliant
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 23 Oct 2025 | 23 Oct 2025 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 23 Oct 2025 | 23 Oct 2025 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 23 Oct 2025 | 23 Oct 2025 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI252KA | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-MKI252KA
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI252KA | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-MKI252KA 批量生产
