产品概要
描述
The STEVAL-MKI241KA evaluation kit is based on a specific PCB mounting the LSM6DSV16B 6-axis IMU (inertial measurement unit).

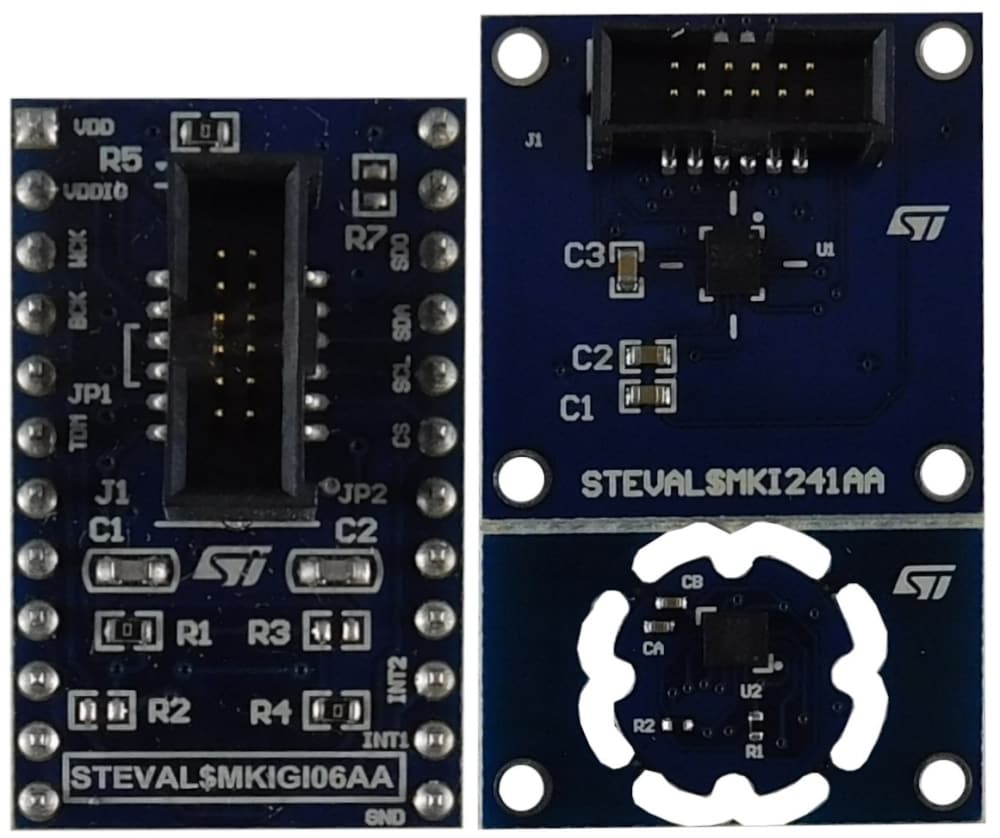

There are two different boards inside the STEVAL-MKI241KA. One can be used as a standard application board and a small adapter can be put inside the earphone to verify the bone conduction feature.
Both boards can be connected to the STEVAL-MKI109D via the STEVAL-MKIGI06A interface board.
The kit provides the complete LSM6DSV16B pinout and comes ready to use with the required decoupling capacitors on the VDD and VDDIO power supply line.
This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.
It is also possible to plug the board into the X-NUCLEO-IKS4A1 expansion board.
-
性能一览
- User-friendly LSM6DSV16B board
- Complete LSM6DSV16B pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109D evaluation platform
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 25 Mar 2024 | 25 Mar 2024 | |||
| ZIP | 1.0 | 21 Mar 2023 | 21 Mar 2023 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 2.0 | 20 Apr 2023 | 20 Apr 2023 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 3.0 | 26 Sep 2023 | 26 Sep 2023 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI241KA | Active 产品已量产 | CARD | Industrial | Ecopack2 | Yes | - | - | |
STEVAL-MKI241KA
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI241KA | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-MKI241KA Active
