产品概述
描述

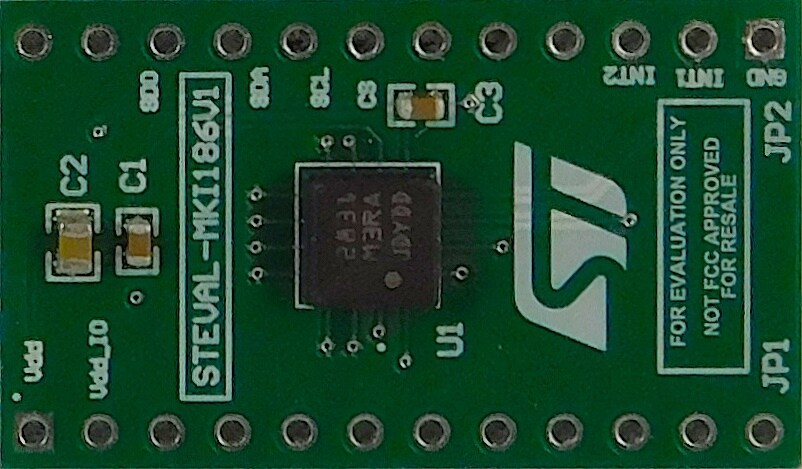

The STEVAL-MKI186V1 adapter board is designed to facilitate the evaluation of the IIS3DHHC 3-axis accelerometer. The board offers an effective solution for fast system prototyping and device evaluation directly in the user’s own application.
The STEVAL-MKI186V1 can be plugged into a standard DIL24 socket. The adapter provides the complete IIS3DHHC pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 and STEVAL-MKI109D evaluation platforms that include a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.
-
所有功能
- Complete IIS3DHHC pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109V3 and STEVAL-MKI109D evaluation platforms
- RoHS compliant
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 12 Mar 2018 | 12 Mar 2018 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 12 Mar 2018 | 12 Mar 2018 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 12 Mar 2018 | 12 Mar 2018 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI186V1 | 批量生产 | CARD | 工业 | Ecopack2 | - | - | - | |
STEVAL-MKI186V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI186V1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-MKI186V1 批量生产
