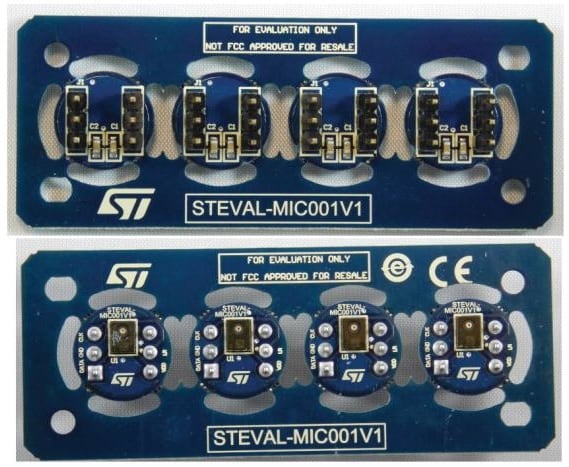

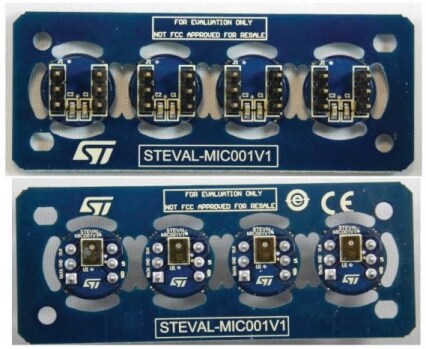

产品概要
-
性能一览
- 4 x MP34DT05-A top port digital MEMS microphones
- Daughterboard to be used with X-NUCLEO-CCA02M1
- Vsupply from 1.6 to 3.6 V
- 122.5 dBSPL acoustic overload point
- Omnidirectional sensitivity
- PDM single-bit output
- 64 dB of SNR
- Sensitivity -26 dBFS ±3 dB
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 22 Dec 2017 | 22 Dec 2017 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 22 Dec 2017 | 22 Dec 2017 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 22 Dec 2017 | 22 Dec 2017 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-MIC001V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
STEVAL-MIC001V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
