Please contact ST to provide your specific requests and get your custom built board(s).

描述

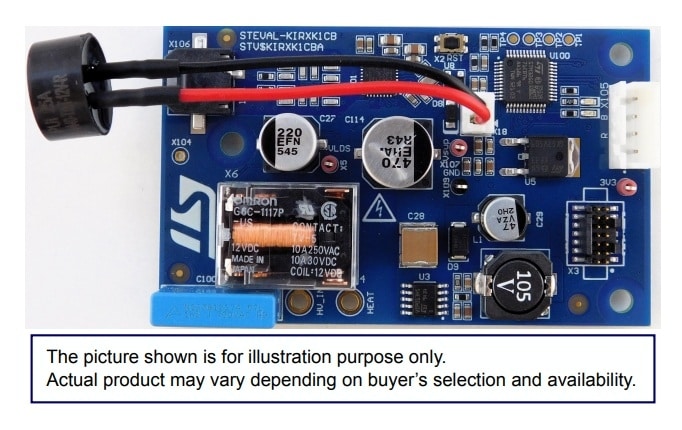

The STEVAL-KIRXK1CB is an evaluation board for Ki cordless kitchen receiver, specifically designed for water kettle appliances to be powered and controlled via a Ki wireless power transmitter (STEVAL-KITXCB).

Ki cordless kitchen is a relatively new standard for wireless power initiated by the Wireless Power Consortium (WPC). This standard targets to replace traditional kitchen appliances using power cords (for example, mixer, toaster, rice cooker, coffee makers) and to combine eventually with induction cooktop with efficiency > 90% of equivalent corded devices required up to 2.2 kW.

Thanks to the ST25R3918 multi-purpose NFC transceiver, the system ensures seamless communication and power negotiation with the base station (PTx) to optimize power transfer in static mode and ensure safety compliance.

The STEVAL-KIRXK1CB also integrates energy harvesting to power up the user interface, minimize standby energy consumption, and support low-power functions independently of the main power transfer.

Secure device authentication and pairing with the PTx is achieved using the STSAFE secure element, providing reliable verification.

所有功能
Designed for 2 kW Ki cordless kitchen receiver (water kettle)

Static power transfer according to Ki control type 1

NFC based communication between transmitter and receiver

Enables auxiliary power and bidirectional data path

Essential for interoperability and safety

Comprehensive safety mechanisms

Market-proven BOM, adopted in Ki-certified products currently available on the market
