STEVAL-ISQ010V1

批量生产
Design Win

基于TSC102的高侧电流感应放大器演示板

下载数据摘要 Order Direct

产品概述

描述

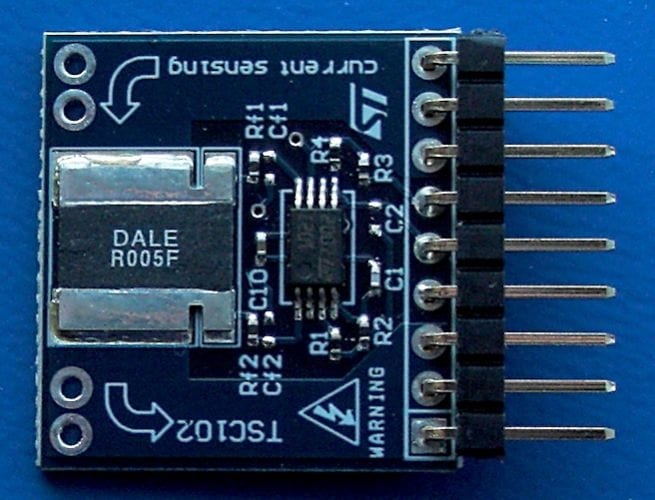

The STEVAL-ISQ010V1 demonstration board is specifically designed for the TSC102 device.

The TSC102 measures a very small voltage drop on a high-side shunt resistor and, using an internally fixed gain, amplifies the difference into a ground-referenced output voltage. The amplification gain is internally fixed. The device is housed in a tiny TSSOP8 package.

Input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8 V to 30 V during operation. Under absolute maximum rating conditions, the Vp and Vm pins can sustain as much as 60 V to handle events like load-dump conditions, and as low as -16 V to deal with reverse battery conditions.

The supply voltage can range from 3.5 V to 5.5 V, therefore the TSC102 can be supplied by the same voltage regulator used for digital circuits.

Current consumption is less than 450 μA over the temperature range, and low input bias current is less than 7 μA in standard conditions.

  • 所有功能

    • RoHS compliant
    • Integrated fully-accessible operational amplifier for tailor-made signal conditioning
    • Independent supply and input common-mode voltages
    • Wide common-mode survival range: -16 V to 60 V (reverse battery and load-dump conditions)
    • Wide common-mode operating range: 2.8 V to 30 V
    • Internally fixed gain: 20 V/V
    • Low current consumption: Icc max = 450 μA

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISQ010V1
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISQ010V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2
