产品概述
描述

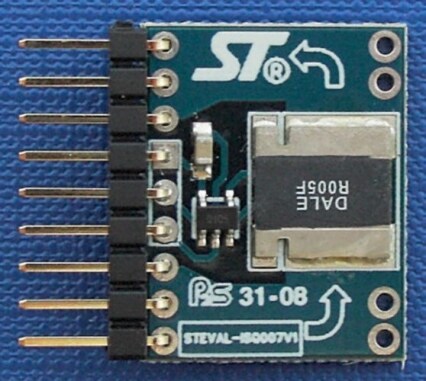

This demonstration board is specifically designed for the TSC101 integrated circuit.
The TSC101 measures a very small voltage drop on a high-side shunt resistor, and, using an internally fixed gain, amplifies the difference into a ground-referenced output voltage; the amplification gain is internally fixed.
Input common-mode and power supply voltages are independent.
The common-mode voltage can range from 2.8 V to 30 V in operating conditions, and up to 60 V in absolute maximum ratings.
The supply voltage can range from 4 V to 24 V.
Current consumption of less than 300 μA over the temperature range and low input bias current (less than 8 μA in standard conditions, a few 100 nA if VCC isn't supplied) are particularly interesting to save power in the application.
-
所有功能
- Buffered output
- Internally fixed gain:
20 V/V (TSC101A) 50 V/V (TSC101B) 100 V/V (TSC101C) - Independent supply and input common-mode voltages
- Wide common-mode surviving range: -0.3 V to 60 V (load-dump)
- Wide common-mode operating range: 2.8 V to 30 V
- Low current consumption: ICC max is 300 μA
- Wide supply voltage range: 4 V to 24 V
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ISQ007V1 | 批量生产 | CARD | 工业 | Ecopack2 | - | - | - | |
STEVAL-ISQ007V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-ISQ007V1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-ISQ007V1 批量生产
