STEVAL-ISB045V1

NRND
Design Win

2.5 W无线充电发射器评估套件

下载数据摘要

产品概述

描述

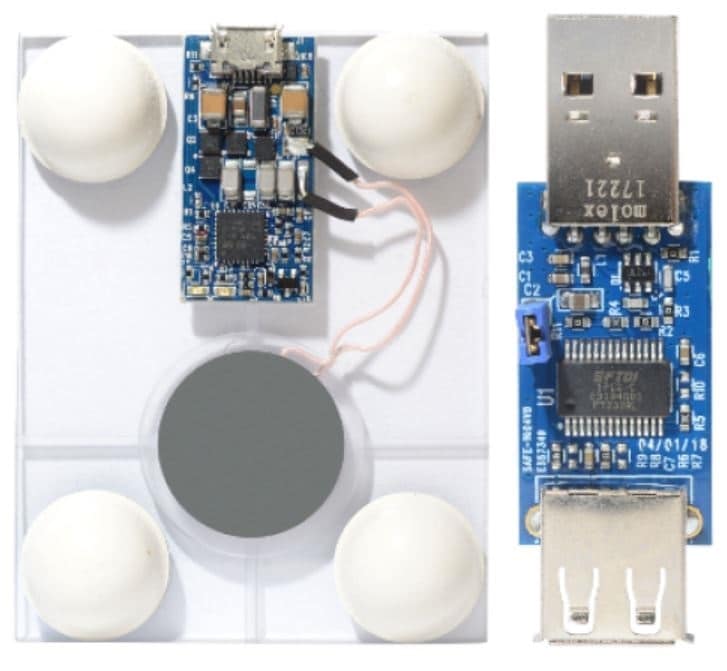

The STEVAL-ISB045V1 evaluation kit includes the STEVAL-ISB045V1T wireless battery charger transmitter evaluation board based on the STWBC-WA digital controller, the firmware and the STEVAL-WBCDNGV1 USB-to-UART dongle needed to use the STSW-STWBCGUI.

The STEVAL-ISB045V1 firmware offers you the flexibility of modifying LEDs or GPIO behavior and customizing I²C and UART signals.

The layout is based on cost-effective two-layer PCB.

Tools for the STEVAL-ISB045V1 evaluation kit are available on www.st.com and allow you to access run time information such as regulation error, frequency or protocol status.

  • 所有功能

    • STWBC-WA digital controller
    • 2.5 W output power
    • Resistive and capacitive modulation
    • Foreign object detection (FOD)
    • Active presence detector
    • Turn-key and firmware APIs
    • Total reference design (IC, firmware, GUI and dongle)
