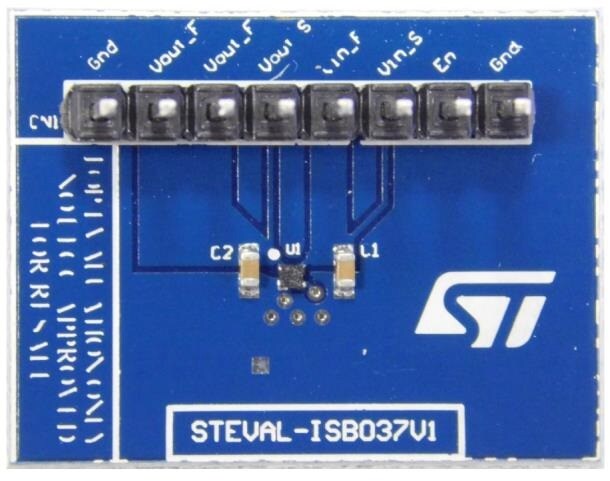

The STEVAL-ISB037V1 board features the LD39020 high performance linear voltage regulator, configured to convert a DC input voltage from 2.4 V to 5.5 V into a precise and stable 1.8 V output voltage.
Only two small ceramic capacitors are needed to implement the linear regulator solution.
The very low dropout LD39020 voltage regulator features high PSRR and low quiescent current in a tiny DFN4 package with a footprint of only (1 x 1) mm².
It is designed for low-power battery operated equipment such as smartphones, tablets and wearable devices.
-
All features
- Output current: 200 mA
- Logic controlled electronic shutdown
- High PSRR
- 80 dB @ 1 kHz
- 50 db @ 100 kHz
- Quiescent current:
- 20 μA typ at no load
- 0.03 μA typ in off mode
- 1.8 V ± 0.5% output voltage
- Other voltage options available on request
- DFN4-1 x 1 package (0.8 x 0.8 available on request)
- RoHS compliant
