STEVAL-ISB009V1

NRND
Design Win

基于STC3100的锂离子电池监测和燃气表评估板

下载数据摘要

产品概述

描述

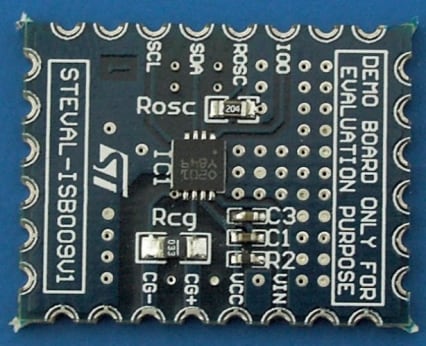

The STEVAL-ISB009V1 demonstration board, based on the STC3100, is able to monitor the critical parameters of a single-cell Li-Ion battery (voltage, temperature, and current) and includes hardware functions to implement a gas-gauge for battery charge monitoring, based on a programmable 12-bit to 14-bit A/D converter.

The battery current can be up to 2.5 A and the accumulator system provides a capacity up to +/-7000 mAh with a resolution of 0.2 mAh.

The device is programmable through an I2C interface.

  • 所有功能

    • Accurate battery voltage measurement
    • Coulomb counter to keep track of the battery’s state-of-charge
    • Internal temperature sensor
    • Internal or external 32 kHz time base
    • I2C interface for battery monitoring and device control
    • 0.5 % battery voltage accuracy
    • 1 % Coulomb counter accuracy using an external RTC signal (3.5 % using the internal time base).
    • Low power consumption: 100 μA in operating conditions, 2 μA in stand-by mode
    • RoHS compliant
