产品概要
描述

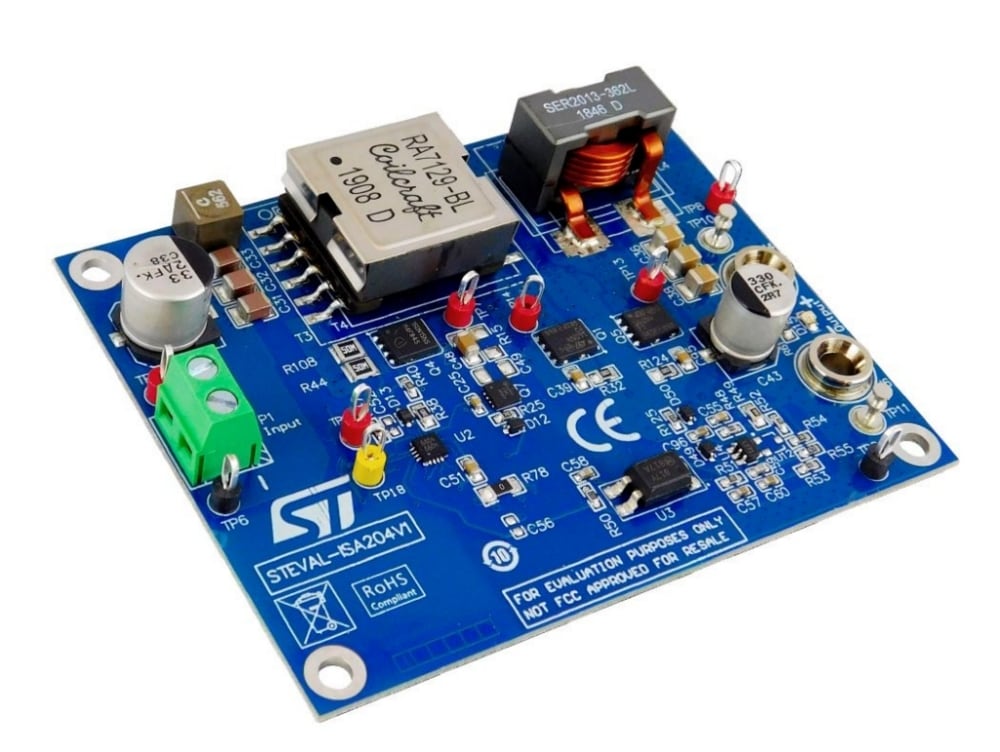

The STEVAL-ISA204V1 evaluation board is designed to demonstrate high efficiency DC-DC conversion, able to output 100 W (5 V/20 A) from 42 to 56 V DC input, which is especially suitable for telecom applications.
The power conversion stage is based on an active clamp forward topology managed by a PM8804 PWM controller featuring all the integrated circuitry necessary for a compact and efficient 48 V converter. The highly configurable controller includes a programmable oscillator for switching frequency regulation up to 1 Mhz, adjustable slope compensation, dual complementary low-side drivers with programmable dead time, programmable soft start, soft turn off and a programmable current sense blanking time.
-
性能一览
- DC-DC forward converter based on PM8804
- Input voltage range: 42 – 56 VDC
- Switching frequency: 250 kHz
- Output:
- Power: 100 W
- Voltage: 5 VDC
- Current: up to 20 A
- Peak efficiency > 94%
- Open circuit protection
- RoHS complaint
- WEEE compliant
