产品概要
描述

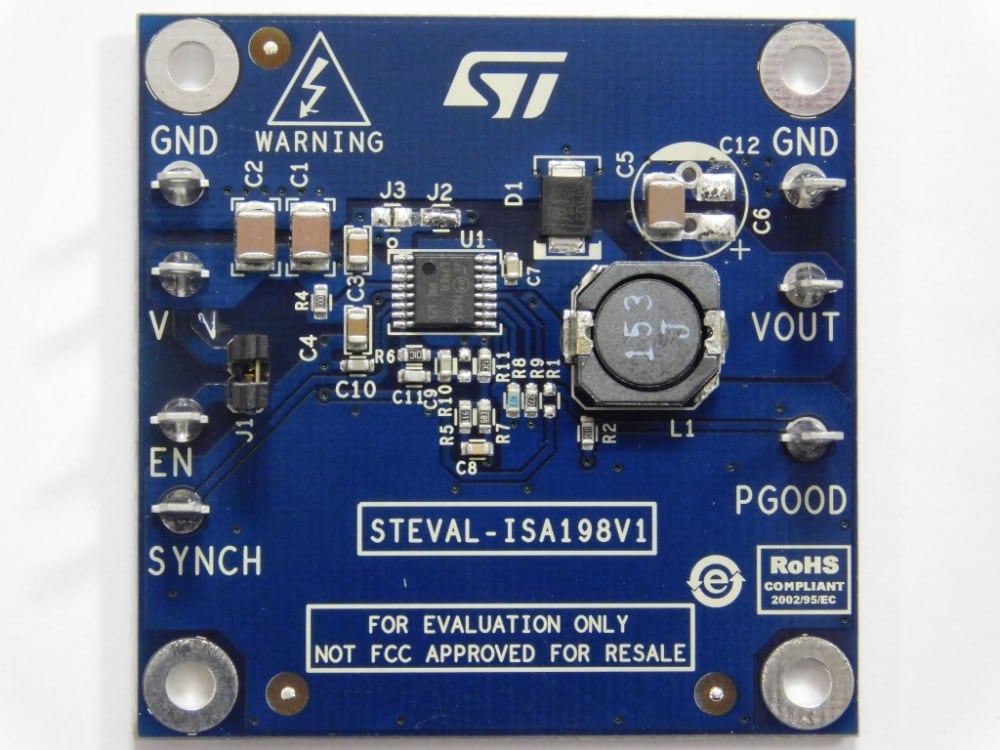

The STEVAL-ISA198V1 product evaluation board is a step-down switching power supply based on the L7987L regulator in an HTSSOP16 package. The output voltage can be set starting from 0.8 V. Low drop-out operation, due to the advanced integrated switch management, can be achieved.
The L7987L is a 61 V, 2 A step-down asynchronous switching regulator with embedded power MOSFET capable of delivering up to 2 A of current, depending on the application conditions.
The embedded switch-over feature on the VBIAS pin and the light load management (pulse skipping) help maximize power conversion efficiency across the entire load range.
The soft-start, current limit threshold and switching frequency are adjustable for application optimization.
The device includes an internal 250 kHz oscillator that can be externally adjusted up to 1.5 MHz; two L7987L regulators can be synchronized in a 180° out-of-phase configuration for reduced total input RMS current.
-
性能一览
- 4.5 V to 60 V input voltage
- Step-down (buck) conversion
- 5 V output voltage (VIN > 6 V)
- Up to 2 A DC output current
- 500 kHz switching frequency
- 5 ms programmed soft-start
- Compliant with ceramic output capacitors
- 180° out of phase synchronization available
- Auto recovery overcurrent and thermal protection
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
SIMPLIS models (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2024.06 | 04 Mar 2025 | 04 Mar 2025 |
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 14 Dec 2016 | 14 Dec 2016 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 14 Dec 2016 | 14 Dec 2016 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 14 Dec 2016 | 14 Dec 2016 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA198V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
