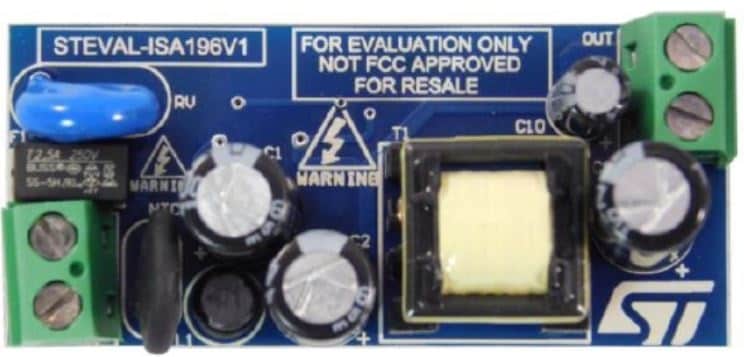

The STEVAL-ISA196V1 evaluation board implements a flyback converter (5 V / 1.2 A) wide range mains developed for general purpose applications.
The core of the application is the VIPer11, a new off-line high voltage converter from the VIPerPlus family.
The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control.
The main characteristics of the evaluation board are its single layer, small size and minimal BOM, high efficiency and low standby consumption.
-
性能一览
- Universal AC main input voltage range: 85VAC to 265VAC
- Output voltage: 5 V
- Output current: 1.2 A
- Rated output power: 6 W
- No load input power @230 VAC: < 10 mW
- Active mode efficiency: > 78%
- EMI: according to EN55022-Class-B
- RoHS compliant
