使用VIPER38HD的8.4 W / 30 W峰值功率离线反激式转换器

下载数据摘要

产品概述

描述

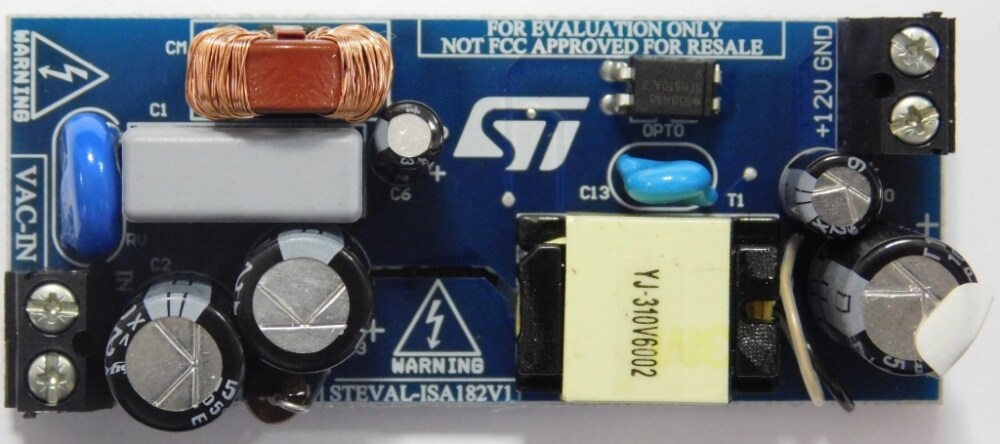

The STEVAL-ISA182V1 evaluation board implements an isolated flyback converter (12 V / 0.7 A) 8.4 W (30 W peak), US range 85 – 132 VAC, developed for metering.

The core of the application is the VIPER38HD, the latest offline converter from the VIPerPlus family. The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control. The device features an adjustable extra power timer (EPT) that enables the IC to sustain overload conditions for a few seconds.

The main characteristics of the evaluation board are its small size, minimal BoM, high efficiency and low standby consumption. Extremely low consumption under the no-load condition is ensured thanks to burst mode operation that reduces the average switching frequency and minimizes all frequency related losses.

VIPER38HD operates at 115 kHz fixed frequency. Frequency jittering is implemented to help meet the standards regarding electromagnetic disturbance. The IC features high-level protections like dual-level OCP, output overvoltage, short-circuits and thermal shutdown with hysteresis. After the removal of a fault condition, the IC is automatically restarted.

  • 所有功能

    • US input range: 85 – 132 VAC, frequency: 50 – 60 Hz
    • Output voltage / current: 12 V / 0.7 A (2.5 A peak)
    • Very compact size
    • Standby mains consumption: lower than 25 mW at 115 VAC
    • Min. active mode efficiency: 81.14%
    • Min. active mode at 10% load efficiency: 71.14%
    • EMI: according to EN55022-Class-B
    • RoHS compliant

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISA182V1
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISA182V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2
