STEVAL-ISA179V1

批量生产
Design Win

15 V / 0.15 A降压转换器,使用VIPer™ Plus - VIPer0P

下载数据摘要 Order Direct

产品概述

描述

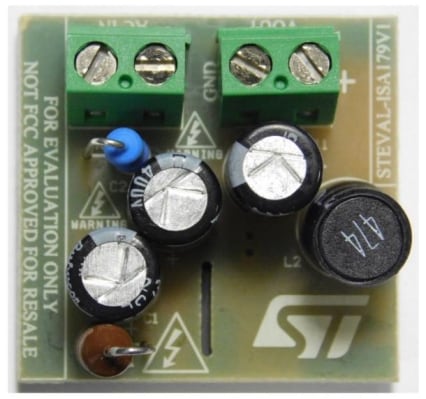

The STEVAL-ISA179V1 evaluation board implements a wide mains range buck converter (15 V / 0.15 A), developed for general purpose applications.

The core of the application is the new VIPer0P off-line high voltage converter of the VIPerPlus family, featuring the Zero Power characteristic.

The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control.

The evaluation board features a single layer design, small size, minimal BOM, high efficiency and low standby consumption.

  • 所有功能

    • Universal AC main input voltage range: 85 VAC to 265 VAC
    • Output range: 15 V / 0.15 A
    • Rated output power: 2.25 W
    • Input power in standby @230 VAC: less than 40 mW
    • Active mode efficiency: greater than 77%
    • EMI: EN55022-Class-B compliant
    • RoHS compliant

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISA179V1
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISA179V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
