产品概述
描述

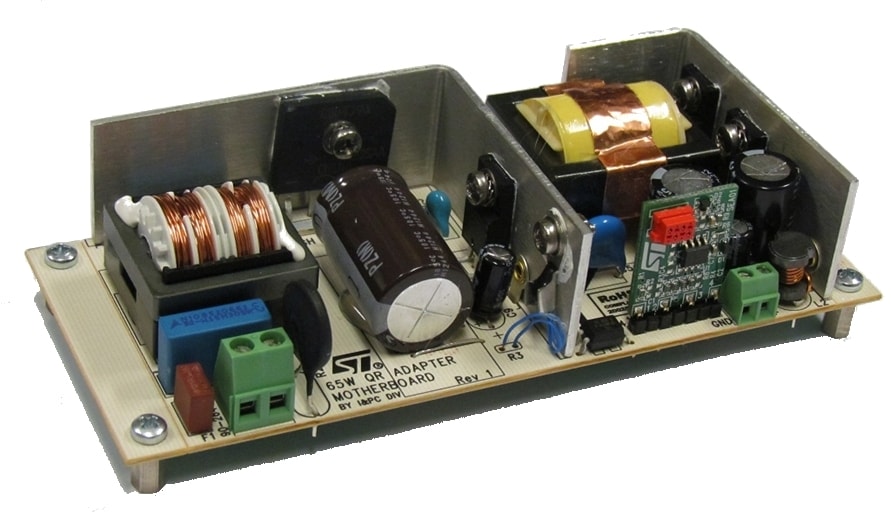

The STEVAL-ISA161V1 is an evaluation board to test the performance of the SEA01 constant voltage and current controller with online digital trimming from STMicroelectronics. The board implements a 65 W adapter, targeting applications such as power supplies for high-end portable computers. The board uses the SEA01 as secondary side CV/CC controller, allowing the application to satisfy very precise output voltage and current regulations thanks to the digital trimming technique employed. The primary side PWM controller is the L6566B. This device drives a TM flyback topology, the best fit for this type of application.
The SEA01 is mounted on a small daughterboard that includes a connector to communicate, via I²C protocol, with an external trimming tool. This evaluation board can therefore be useful also as a means to test the benefits of digital trimming in a real application. The SEA01, housed in an SO8 package, is a CV/CC controller which includes 2 transconductance op-amps and 2 voltage references, digitally trimmable using an I²C interface. ST also offers an advanced trimming board (STEVAL-PCC019V1) that allows users to perform all the trimming operations (including automatic trimming) using a standard Windows®-based PC.
-
所有功能
- Universal input mains range: 90 to 264 Vac, 45 to 66 Hz
- 65 W continuous output power
- Precise output levels:
- CV: 19 V ± 0.1%
- CC: 3.75 A ± 1.67%
- No load consumption < 100 mW @ 230 Vac
- Average efficiency > 89%
- Full set of protection features
- EMI: in accordance with EN55022 - class B
- Safety: in accordance with EN60950
- PCB: CEM-1, single side 35 µm
- Board size: 58 x 121 mm, 25 mm height
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA161V1 | NRND | CARD | 工业 | Ecopack2 | - | - | - | |
STEVAL-ISA161V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | Board production status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA161V1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
STEVAL-ISA161V1 NRND
