STEVAL-ISA141V1

批量生产
Design Win

基于STBB3J的2 A 2 MHz高效双模降压-升压DC-DC转换器,Vout = 3.3 V

下载数据摘要

产品概述

描述

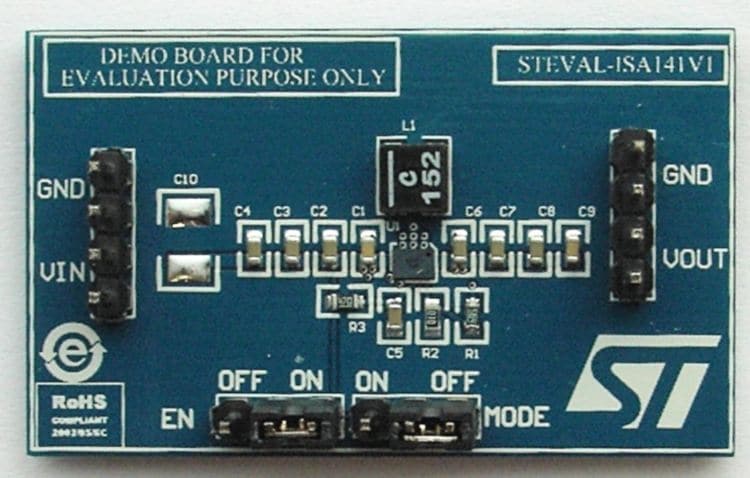

The STEVAL-ISA141V1 evaluation board is based on the STBB3J fixed-frequency, high-efficiency, buck-boost DC-DC converter providing 1.2 to 5.5 V output voltages starting from a 1.8 to 5.5 V input voltage.

The device can operate with input voltages higher than, equal to, or lower than the output voltage making the product suitable for cell lithium-ion applications where the output voltage is within the battery voltage range.

The MODE pin allows selecting between auto mode and forced PWM mode, taking advantage of either a lower power consumption or the best dynamic performance.

  • 所有功能

    • Input voltage range from 1.8 V to 5.5 V
    • 2 A output current at 3.3 V in buck mode (VIN = 3.6 V to 5.5 V)
    • 800 mA output current at 3.3 V in boost mode (VIN 2.0 V)
    • Typical efficiency higher than 94%
    • ±2% DC feedback voltage tolerance
    • Automatic transition between step-down and boost mode
    • Adjustable output voltage from 1.2 V to 5.5 V
    • Power save mode (PS) at light load
    • 2.0 MHz fixed switching frequency
    • Adjustable switching frequency up to 2.4 MHz (external synchronous square signal)
    • Device quiescent current less than 50 µA
    • Load disconnect during shutdown
    • Shutdown and soft-start functions
    • Shutdown current <1 A
    • Available in Flip-Chip 20, pitch = 0.4 mm
    • RoHS compliant

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISA141V1
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISA141V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
