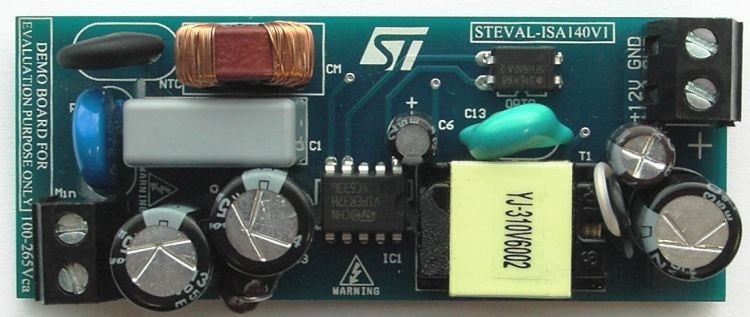

产品概述
-
所有功能
- AC Main Input voltage range: 100 VACto 265 VAC
- Mains frequency (fL): 50 Hz / 60 Hz
- Output voltage typ: 12 V
- Output current: 1.25 A
- Output ripple voltage: 50 mV
- Rated output power: 15 W
- Input power in standby @230 VAC: 50 mW
- Active mode efficiency: 78%
- Ambient operating temperature: 60 °C
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
