产品概要
描述

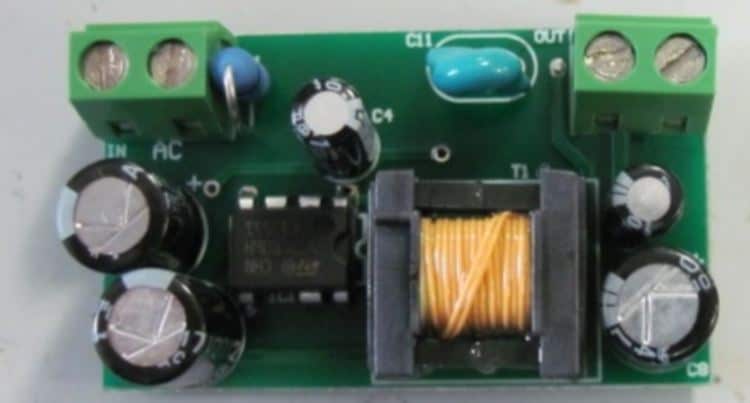

The STEVAL-ISA134V1 demonstration board is a a 12 V - 4 W power supply in isolated flyback topology using the VIPer06, a new off-line high voltage converter by STMicroelectronics.
The VIPer06 features an 800 V avalanche rugged power section, PWM operation at 115 kHz with frequency jittering for lower EMI, cycle-by-cycle current limit with adjustable set point, on-board soft-start and safe auto-restart after a fault condition.
Protection features available include thermal shutdown with hysteresis, delayed overload protection, and open loop failure protection (the latter available only if auxiliary winding is used).
This flyback converter design is suitable for various applications, such as external adapter or as an auxiliary power supply in consumer equipment.
-
性能一览
- AC main input voltage VIN: 85 VAC- 265 VAC
- Main frequency fL: 50 Hz; 60 Hz
- Output voltage VOUT: 12 V
- Max output current IOUT: 333 mA
- Precision of output regulation ΔVOUT_LF: ± 5%
- High frequency output voltage ripple: ΔVOUT_HF50 mV
- Min active mode efficiency ηAV = 71%
- Max ambient operating temperature: TAMB = 60 °C
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 3.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA134V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
STEVAL-ISA134V1
