基于VIPer16LN的12 V/4.2 W宽范围单输出隔离反激式转换器演示板

下载数据摘要

产品概述

描述

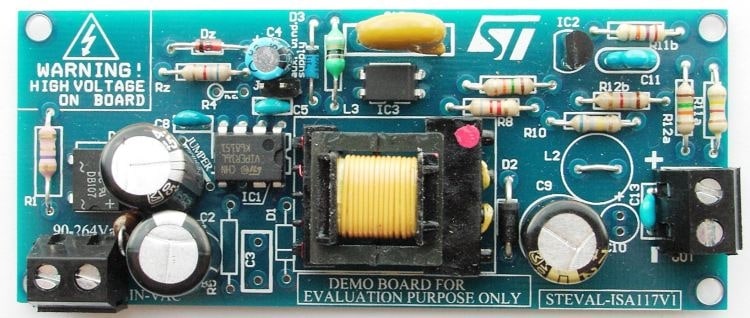

This board implements a 4 W single-output wide range mains power supply set in flyback isolated topology, using the VIPER16LN, an off-line high voltage converter by STMicroelectronics.

The features include an 800 V avalanche rugged power section, PWM operation at 60 kHz with frequency jittering for lower EMI, current limiting with adjustable set point, on-board soft-start, a safe auto-restart after a fault condition and a low stand-by power.

The device does not require a biasing circuit to operate because the IC can be supplied by an internal current generator, therefore saving the cost of the transformers auxiliary winding. If the device is biased through an auxiliary winding, the demonstration board can reach very low standby consumption (< 30 mW at 230 VAC, with output load disconnected).

The IC implements several protections that considerably increase end-product safety and reliability: thermal shutdown with hysteresis, delayed overload protection, open loop failure protection (the last one available only if the device is biased through the auxiliary winding).

  • 所有功能

    • Universal input mains range:
      • input voltage 90 - 264 VAC
      • frequency 45 - 65 Hz
    • Single output voltage: 12 V at 0.35 A continuous operation
    • Stand-by mains consumption: < 30 mW at 230 VAC
    • Average efficiency: > 75 %
    • Fully protected against faults (overload, feedback disconnection and overheating)
    • EMI: according to EN55022-Class-B
