产品概要
描述

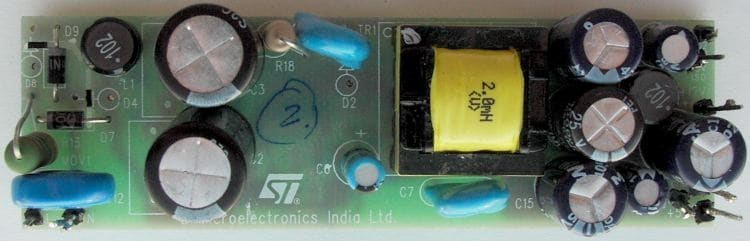

The STEVAL-ISA105V1 demonstration board implements a power supply based on a quasi-resonant mode of operation using ST primary side ALTAIR04-900 flyback switch.
The ALTAIR04-900 is a high-voltage all-primary sensing switcher intended for operating directly from the rectified mains with minimum external parts. It combines a high-performance low voltage PWM controller chip and a 900 V avalanche-rugged power section in the same package.
The controller is a current-mode specifically designed for offline quasi-resonant flyback converters. The device is capable of providing constant output voltage using all primary sensing feedback. This eliminates the need for the optocoupler, the secondary voltage reference, as well as the current sensor, while still maintaining quite accurate regulation.
-
性能一览
- Min. operating voltage Vacmin: 90 Vac
- Max. operating voltage Vacmax: 265 Vac, 440 Vmax
- Topology: quasi-resonant flyback converter, primary side regulation
- Mains frequency fL: 50 Hz +/-3 Hz
- Input/output isolation: yes, Galvanic isolation >2.7 KV
- Nominal output voltage:
- 5 V/70 mA nominal, 1 A max.
- 3.3 V/30 mA nominal, 150 mA max.
- 12 V/2 mA nominal, 100 mA max.
- 5 V_ISO/2 mA nominal, 80 mA max.
- Total output power Pout: 1 W nominal, 7.5 W (during transmission mode)
- Typical efficiency @ 230 Vac: > 75%
- Output voltage pk-pk ripple: < 100 mV
- Protection: short-circuit protection
- Reflected voltage of transformer, VR: 100 V
- RoHS compliant
