产品概要
描述

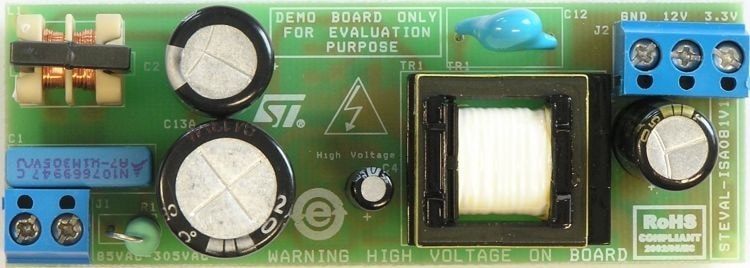

The STEVAL-ISA081V1 demonstration board is a switched mode power supply (SMPS) demonstration board and it is an isolated SMPS capable of delivering a 12 W output over a wide input voltage range.
It is designed for a mains application focusing on cost and size effective solutions.
The STEVAL-ISA081V1 SMPS generates 12 V nominal output voltage using primary regulation and it is based on the VIPER26 monolithic converter, integrating a high voltage MOSFET and PWM controller in one package.
-
性能一览
- Vin: 85 ~ 305 Vrms / f: 45 ~ 66 Hz
- Vout1: 12 VDC ± 10 %, 1 A (at 3.3 V not loaded)
- Vout2: 3.3 VDC ± 4 %, 100 mA
- Maximum total output current: 1 A
- Standby < 120 mW at 230 VAC
- Short-circuit: protected
- PCB type and size: FR4, single-side 35 μm, 32 x 90 mm
- Isolation: isolated 4 kV / 8 mm
- EMI: according to EN55022 Class
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA081V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
