产品概述
描述

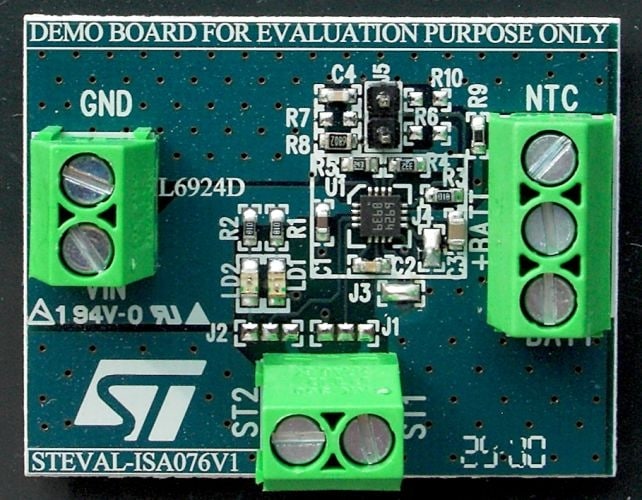

The STEVAL-ISA076V1 demonstration board is based on the L6924D battery charger system with integrated power switch. The L6924D device is a fully monolithic battery charger dedicated to single-cell lithium-ion polymer (Li-Pol) battery packs, and is the ideal solution for space-limited applications such as PDAs, handheld equipment, cellular phones, and digital cameras.
When an external voltage-regulated wall adapter is used, the L6924D works in linear mode, and charges the battery using a constant current/constant voltage (CC/CV) profile.
When a current-limited adapter is used, the device can operate in quasi-pulse mode, dramatically reducing power dissipation.
-
所有功能
- Operating input voltage up to 12 V
- Fully integrated solution with power MOSFET, reverse blocking diode, sense resistor, and thermal control
- Both linear and quasi-pulse operation
- Programmable charge current both in fast charge (up to 1 A) and in pre-charge mode
- Selectable 4.1 V and 4.2 V output voltage (±1% accuracy)
- Programmable termination current
- Programmable pre-charge mode voltage threshold
- Programmable charge timer
- Multifunction pin for flexible charge process termination
- Status outputs to drive LEDs or host processor interface
- Battery absence detection
- Closed loop thermal control
- NTC or PTC thermistor interface for battery temperature monitoring and protection
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
