产品概要
描述

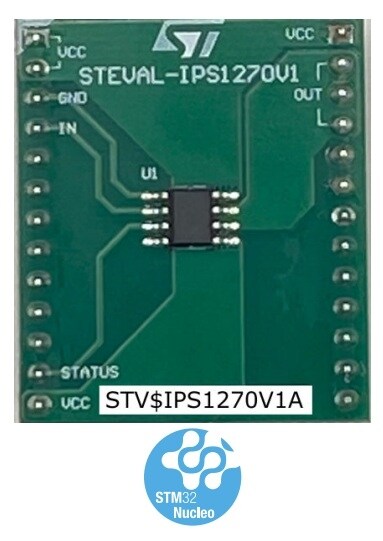

The STEVAL-IPS1270V1 industrial chip board provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1270H single channel high-side switch, which features active current limitation combined with thermal shutdown and automatic restart.
The STEVAL-IPS1270V1 interfaces through 2 x 13 pin strips with the X-NUCLEO-DOHS0A1 expansion board for STM32 Nucleo.
The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board through the Arduino® R3 connectors.
-
性能一览
- Based on the IPS1270H single channel high-side switch, which features:
- RON(MAX) (@TJ = 25 °C) = 135 mΩ
- Very low standby current
- CMOS compatible input
- Thermal shutdown protection and diagnosis
- Undervoltage shutdown
- Overvoltage clamp
- Output voltage clamp
- Load current limitation
- Reverse polarity protection
- Electrostatic discharge protection
- Designed to drive DC-13 loads according to EN 60947-5-1
- Designed to meet IEC 61131-2, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
- SO8 package
- CE certified:
- EN IEC 61000-6-1:2019
- EN IEC 61000-6-3:2021
- EN 55032:2015 + A1:2020 + A11:2020
- EN 55035:2017 + A11:2020
- EN IEC 61000-3-2:2019 + A1:2021 + A2:2024
- EN 61000-3-3:2013 + A1:2019 + A2:2021
- ECOPACK®: lead free and RoHS compliant
