产品概述
主要优势
描述

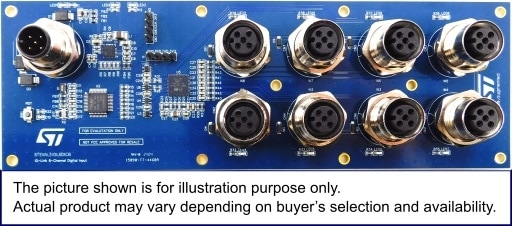

The STEVAL-IOL8DICB is an IO-Link device that features 8 digital input channels. This device is designed to provide a turnkey solution for industrialization, making it an ideal choice for industrial applications and an easy way to evaluate all chips.
With its IO-Link communication (supported by L6364 and software stack inside STM32G071CB) and standard M12-A 5 pin Male connector meeting IO-Link class-a interface specifications, the STEVAL-IOL8DICB allows for easy integration with existing industrial IO-Link systems. Additionally, the input voltage range of 19-32 V (IO-Link VBUS) ensures reliable and stable performance in various industrial environments.
The high-speed 8 digital input channels supported by SCLT3-8BQ7 and standard M12-A 4 pin female connectors for each channel make the STEVAL-IOL8DICB a reliable and practical solution for digital input applications. Each connector provides VBUS, input channel pin, and ground pin, supporting both 2-wire or 3-wire high-side sensors.
Furthermore, the STEVAL-IOL8DICB has considered ESD protection provided SMBJ30CA, ensuring the safety and longevity of the device.
Overall, the STEVAL-IOL8DICB is a reliable and efficient IO-Link device that offers high-speed digital input channels and easy integration with existing industrial systems, helping industrial module makers evaluate all chips easier and speed up their prototype development.
-
所有功能
- Standard M12-A 5 pin Male connector meeting IO-Link Class-A interface specifications
- IO-Link communication supported by L6364 and software stack inside STM32G071CB
- Input DC voltage range: 19-32 V (IO-Link VBUS)
- High speed 8 digital input channels support by SCLT3-8BQ7
- Standard M12-A 4 pin female connectors used for each digital input channel
- Each connector provides VBUS, input channel pin and ground pin, which supports both 2-wire or 3-wire high-side sensor
- ESD protection provided by SMBJ30CA
- Reset button
- SWD connector for debugging and programming capability
- UART connector for debugging and serial data transmission
- Protections against surge pulse (up to ± 3APK with 500 Ω coupling) and reverse polarity
- RoHS compliant
特别推荐
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-IOL8DICB | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-IOL8DICB
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-IOL8DICB | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-IOL8DICB 批量生产
