产品概要
Key Benefits
描述

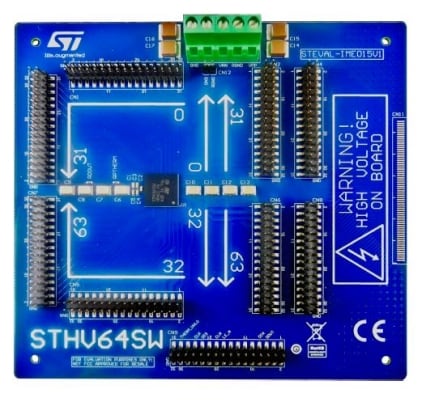

The STEVAL-IME015V1 evaluation board is based on the state-of-the-art STHV64SW high voltage switch matrix for ultrasound imaging applications.
The system can switch 64 independent high voltage channels, and the switch input and output connections are available through standard 2.54 mm headers as well as digital I/Os.
Each channel can be used as a switch for external transmitters/receivers or to directly drive transducers for low frequency applications.
An optional standard ultrasound probe connector can be soldered to the board, to help you evaluate the performace of the STHV64SW in real applications.
-
性能一览
- Suitable for ultrasound imaging applications
- 64 high voltage channels
- Switch input and output header connectors
- High voltage and low voltage connectors to power the STHV64SW
- Digital input and output header connector
- Optional standard probe connector footprint
- RoHS compliant
- WEEE compliant
