产品概要
Key Benefits
描述

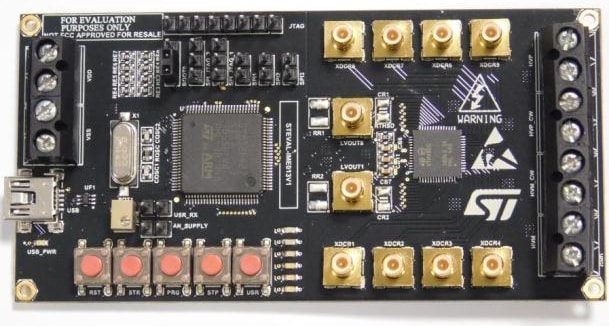

The STEVAL-IME013V1 evaluation board is designed around the STHV800 8-channel, 3-level high-voltage ultrasound pulser IC, a state-of-the-art device designed for ultrasound imaging applications. The STEVAL-IME013V1 offers a simple way to evaluate the ultrasound pulser IC, thanks also to a graphical user interface.
Once the output waveforms are configured, they can be displayed directly on an oscilloscope by connecting the scope probe to the relative BNCs.
-
性能一览
- 8-channel outputs: high voltage and low voltage BNC connectors
- Up to 4 memory locations to store user-designed waveforms
- USB connector to download stored waveforms
- Dedicated connectors to supply high voltage and low voltage to the STHV800 output stage
- 4 key button to quickly select the preferred program
- RoHS compliant
