产品概述
主要优势
描述

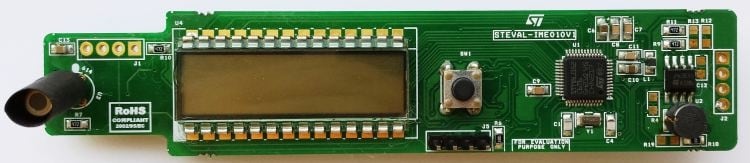

The STEVAL-IME010V1 infrared forehead thermometer evaluation board is an electronic thermometer which utilizes STMicroelectronics’ STM8L052C6 microcontroller and M24LR04E-R 4-Kbit Dynamic NFC/RFID tag with an infrared sensor to measure human body temperature.
Unlike traditional oral or rectal thermometers, this design enables accurate, gentle and non-invasive temperature readings.
-
所有功能
- Low power STM8L MCU-based reference design for non-invasive body temperature measurement
- Designed to function in environmental temperatures between -40 °C and +80 °C
- Capable of measuring body temperature within a range of 20 °C (68 °F) to 42.2 °C (108 °F), with +/-0.5 °C accuracy
- Glass LCD with 6 alphanumeric characters for information display
- Able to provide temperature data in degrees Celsius or Fahrenheit
- The same PCB can be used for IR sensors MLX90614 and MLX90615
- Low battery-level indicator
- Can store up to 60 temperature readings
- Android application for data logging with RF EEPROM over NFC interface
- Current consumption of only 1.2 uA in sleep mode
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
