产品概要
描述

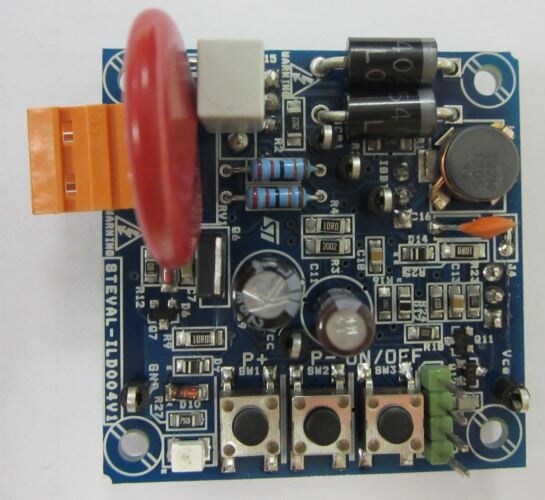

The STEVAL-ILD004V1 evaluation board is designed to propose an innovative and low cost power topology for a light wall dimmer using two sensitive TS820-600FP SCRs and a single STGF10NC60KD IGBT to dim the following lamp types: 100 - 240 V halogen lamps, SELV halogen lamps through magnetic or electronic transformers, and new CFL and LED dimmable lamps.
Control of the board is achieved with the STM8S103F2 microcontroller.
-
性能一览
- Operation for 2-wire wall dimmer
- Leading-edge control only (compatible with all commonly-available lamps on the market)
- Operation at 110 V or 230 V line rms voltage and 50 Hz or 60 Hz line frequency
- Dimmable power range (higher power is possible with larger heatsink):
- 3 W to 600 W for 230 V rms line
- 3 W to 300 W for 110 V rms line
- Power efficiency @ 600 W - 230 V > 99%
- Standby losses @ 230 V < 0.3 W
- Short-circuit protection at startup
- Enhanced interface with push-buttons; soft-start and soft-stop; memory of last setting
- Compliance with EMC standards:
- IEC 61000-4-5: criteria A for 2 kV surge
- IEC 61000-4-4: criteria A for more than 2.5 kV
- Compliant with EN55015 with 600 W - 230 V halogen lamp
- RoHS compliant
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ILD004V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
