STEVAL-IKR002V2D

批量生产
Design Win

SPIRIT1 - 低数据率收发器 - 315 MHz - 子板

下载数据摘要

产品概述

描述

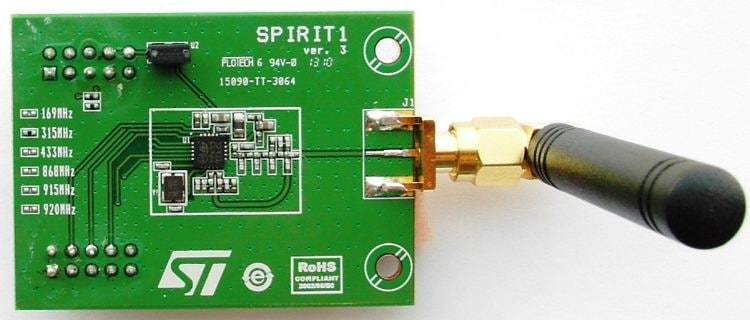

The STEVAL-IKR002V2D product evaluation board is based on the SPIRIT1, a very low-power RF transceiver intended for RF wireless applications in the sub-1 GHz frequency band.

  • 所有功能

    • SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 315 MHz
    • Modulation schemes: 2-FSK, GFSK, MSK,GMSK, OOK, and ASK
    • Programmable air data rate: from 1 to 500 kbps
    • Very low power consumption: 9.2 mA RX and 22 mA TX at +11 dBm
    • Excellent receiver sensitivity (down to -110 dBm)
    • Low duty cycle RX/TX operation mode
    • Automatic acknowledgment, retransmission, and timeout protocol engine
    • AES 128-bit encryption co-processor
    • SPI interface for microcontroller
    • RoHS compliant

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-IKR002V2D
批量生产
CARD 工业 Ecopack2 -

STEVAL-IKR002V2D

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
