产品概要
描述

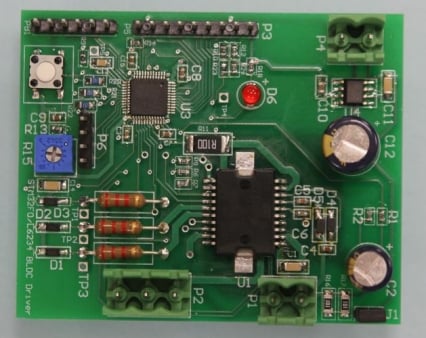

The STEVAL-IHM043V1 demonstration board is a three-phase permanent magnet brushless motor driver designed to drive a motor using a sensorless 6-step commutation technique. The board can operate from a DC input voltage between 7 and 42 VDCand supply a continuous output current of 2 A to the motor.
The circuit consists of three main blocks:
The digital control block uses the STM32F051 microcontroller to implement the control algorithms, and generates the control signals for the power stage.
The second block is the power stage, consisting of a three-phase inverter bridge implemented using the L6234 three-phase motor driver IC.
The power supply block uses the ST78L33 linear regulator to provide the 3.3 V logic supply for the microcontroller.
-
性能一览
- Input voltage range: 7 to 42 Vdc
- Output current: 2 A (5 A peak)
- Can operate up to 100% duty cycle
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-IHM043V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | Yes | - | - | |
