产品概述
描述

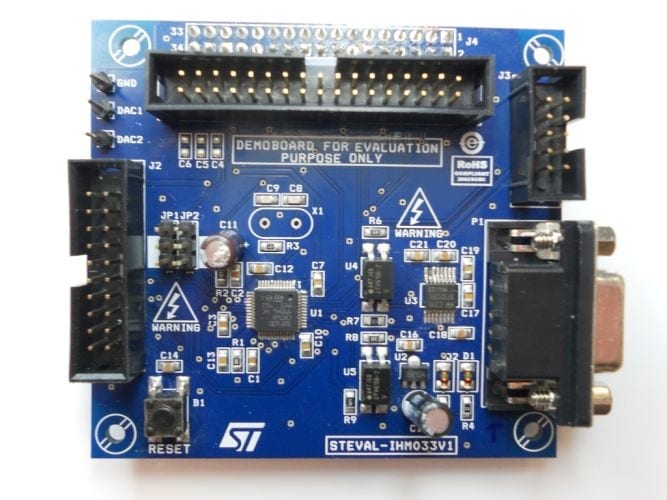

The STEVAL-IHM033V1 is a control stage demonstration board based on the STM32F100CB microcontroller. The board has been designed as an evaluation environment for motor control.
The demonstration board can be used together with the STM32 PMSM single/dual FOC SDK v3.0 and an STMicroelectronics demonstration powerboard equipped with an MC connector (such as the STEVAL-IHM032V1) for a complete motor control evaluation and development platform.
-
所有功能
- Compact size
- Based on STMicroelectronics ARM™ Cortex-M3 core-based STM32F100CB microcontroller
- Connector for interfacing with any STMicroelectronics demonstration powerboard equipped with an MC connector (such as the STEVAL-IHM032V1) with alternate functions (current reference, current limitation/regulation, method selection, current boost)
- Compatible with sinusoidal and trapezoidal control
- Insulated USART communication interface
- Non-insulated UUSCI interface (see STEVAL-PCC009V4)
- External oscillator
- Reset button
- SWD for programming/debugging
- DAC outputs test points
