STEVAL-IFP031V1

批量生产
Design Win

基于CLT01-8SQ7的高速数字输入限流器评估板

下载数据摘要

产品概述

描述

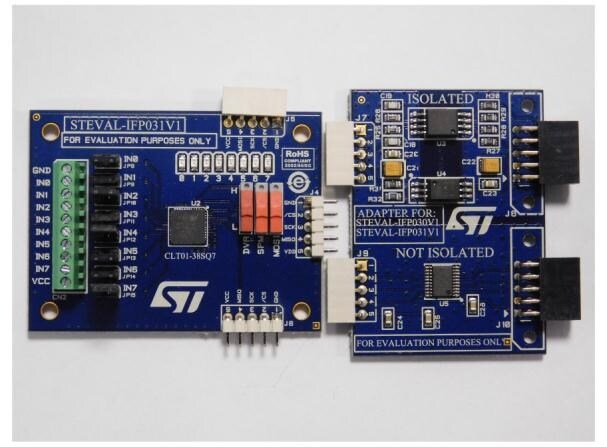

This evaluation board implements an 8-line protected digital input termination with serialized state transfer for Programmable Logic Controllers. It is based on the CLT01-38SQ7 device, which enhances I/O module density by reducing dissipation (78 mW per input) and the number of opto-transistors. A LED driver is embedded in each input section.

Its 6.25 MHz SPI peripheral output serializes the input state transfer to the I/O module controller.

The STEVAL-IFP031V1 evaluation board can be connected in daisy chain with other STEVAL-IFP031V1 evaluation boards.

The adapter board can be placed between the first STEVAL-IFP031V1 evaluation board in the chain and the STEVAL-PCC009V2 STM32x microcontroller evaluation board. This adapter offers two buses: isolated and non-isolated.

  • 所有功能

    • 8 inputs - 8-bit SPI output
    • High side input with common ground
    • 5 V voltage regulator
    • Package: QFN 7 x 7 - 48 L
    • 30 V reverse polarity capable
    • Adjustable current limiters
    • LED output for visual status
    • Optional 16-bit mode with parity check, temperature and voltage alarms
    • Daisy chain capable
    • Power dissipation 78 mW per channel
    • RoHS compliant
