产品概要
描述

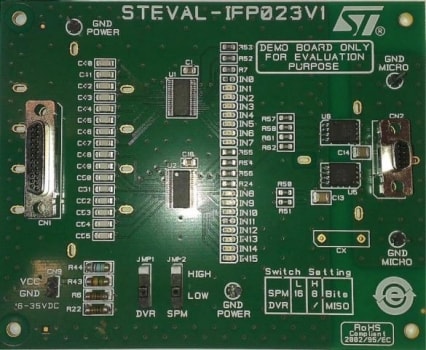

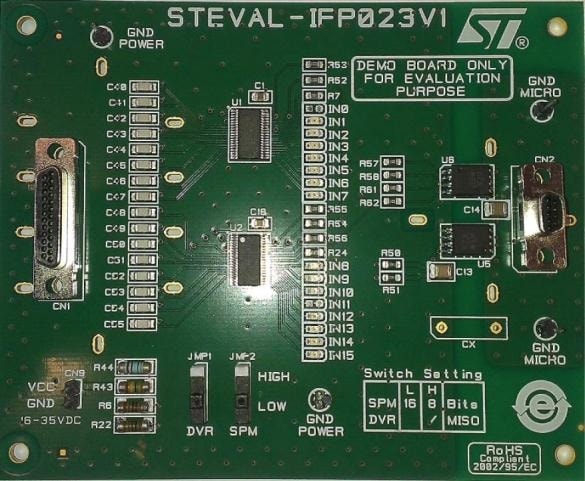

The STEVAL-IFP023V1 product evaluation board allows designers to evaluate the performance of the CLT01-38S4 high-speed protected digital termination array in industrial environmental conditions. The board includes two CLT01-38S4 chips connected to an SPI bus in a daisy chain configuration. It offers a 16-bit digital input interface and indicates each sensor logic state with an LED.
-
性能一览
- 8/16 input channel topology (CLT01-38S4 chip on STEVAL- IFP023V1 board)
- Fully integrated current limiter
- Termination for IEC 61131-2 type 1 and 3 inputs
- SPI communication peripheral working at high frequency
- Voltage regulator integrated on chip
- Thermal/voltage alarms and checksum
- Wide range supply voltage operation
- Low power dissipation compared to discrete solutions
- Low external component count
- Overvoltage protection
- ESD in accordance with IEC 61000-4-2, class 3, 8 kV air discharge, 6 kV contact discharge
- Excellent EMC immunity
-
- High energy surge (IEC 61000-4-5), 2 kV / criteria “B” without external protection
- Fast transient burst (IEC 61000-4-4), ± 3 kV criteria “A”
- RF amplitude modulation (IEC 61000-4-6), 150 kHz - 80 MHz, 3 V / criteria “A”
- SPI bus provides cost-effective isolation
- Reduces overall dissipation
- Compact module HTSSOP-38 package
- RoHS compliant
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-IFP023V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
