产品概要
描述

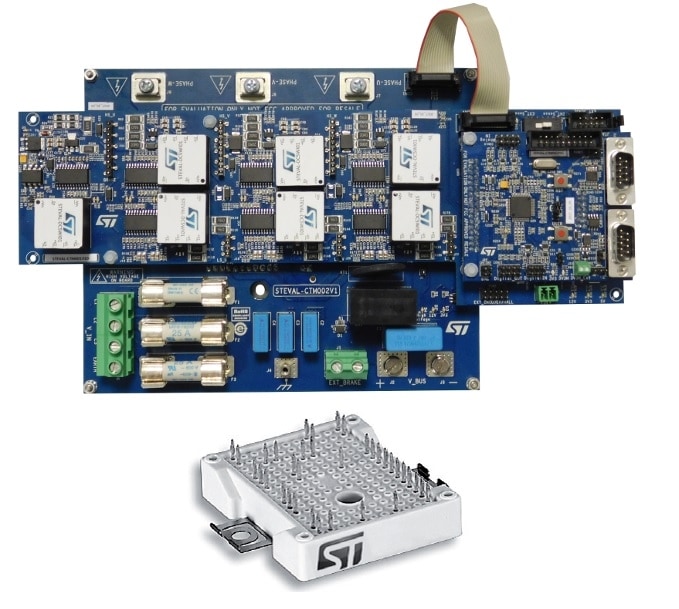

The STEVAL-HKI001V1 is an industrial drive evaluation system designed to demonstrate the capabilities of the A2C35S12M3-F IGBT power module for motor control applications.
It offers a solution for single- or three-phase main input with a converter inverter brake (CIB) topology able to handle a motor current up to 35 A (power module maximum current rating).
The hardware platform is a stackable solution consists of the power stage (STEVAL-CTM002V1), which contains the power module and current sensing circuitry, and the driving kit (STEVAL-CTM001V1) connected via external connectors.
The STEVAL-CTM001V1 driving kit consists of a STEVAL-CTM001V1C control board based on the STM32F303RBT7 microcontroller able to execute the field oriented control (FOC) algorithm to obtain the best performance in all motor control applications, and the STEVAL-CTM001V1D driving board based on the new galvanically isolated STGAP1AS gapDRIVE™, with suitable circuitry to drive the embedded IGBTs in the power module.
The control board has RS232 and CAN external interfaces to let you monitor and control your application on the evaluation system via PC.
-
性能一览
- A2C35S12M3-F ACEPACK™ 2 power module in converter inverter brake (CIB) topology
- Control stage based on STM32F303 ARM® Cortex®-M3 MCU and compatible with ST MC library with ST-FOC algorithm (sensored and sensorless mode)
- In-rush current, thermal and overcurrent protection
- Brake function with external resistor
- On-board isolated current sensing of 2.1 kVRMS
- Galvanically isolated driving stage with STGAP1AS
- Additional gate driving for dissipative brake section (external power resistor)
- Protections and sensing (overvoltage, overcurrent, overtemperature, current reading input)
- Input/output interface (analog/digital)
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 21 Mar 2018 | 21 Mar 2018 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 2.0 | 16 Jan 2019 | 16 Jan 2019 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 2.0 | 16 Jan 2019 | 16 Jan 2019 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-HKI001V1 | NRND 不推荐用于新设计。量产仅供支持现有生产。 | CARD | Industrial | Ecopack2 | - | - | - | |
STEVAL-HKI001V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
