产品概述
描述

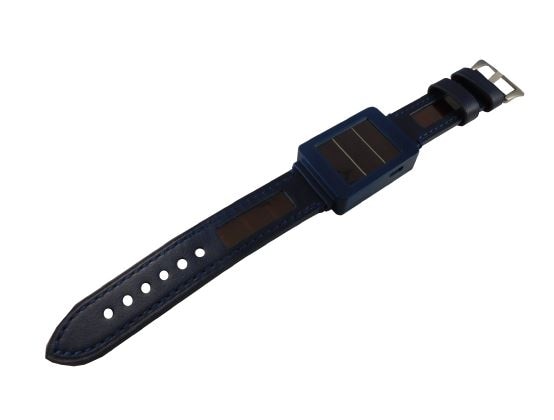

The STEVAL-GPT001V1 is a multi-sensor wearable unit hosted by a silicon strap and powered by the SPV1050TTR energy harvester and battery charger. Attached to the watch face and bands are a set of thin-film solar modules that are extremely efficient, especially in indoor environments.
The development kit simplifies prototyping, evaluation and development of innovative solutions, as well as increasing the autonomy of the system and charging the battery. The STEVAL-GPT001V1 cradle board is designed to accept the tiny STEVAL-STLCS01V1 SensorTile turnkey IoT sensor module, demonstrating the powerful processing capabilities of the ultra-low-power STM32L4 microcontroller and Bluetooth low energy connectivity based on the BlueNRG network processor, as well as a wide spectrum of MEMS motion and environmental sensors and a digital microphone.
-
所有功能
- The development kit package includes:
- Sensor Tile Cradle with SPV1050TTR energy harvester and battery charger, humidity and temperature sensor, gas gauge, lithium battery charger, micro-USB port, ON/OFF switch and breakaway SWD connector
- 3.7 V / 100 mAh Li-Po battery
- SWD programming cable
- Silicon strap embedding the thin-film flexible solar modules and housing the SensorTile Cradle and the battery
- It works along with the STEVAL-STLCS01V1 SensorTile module (not included in the kit)
- It allows firmware debug/upload through the SWD connector and cable
- Software libraries and tools
- STSW-GPT001V1: dedicated SensorTile firmware package supporting different algorithms tailored to the on-board sensors and computation of system autonomy and charge stored in the battery
- FP-SNS-ALLMEMS1: STM32 ODE function pack
- FP-SNS-MOTENV1: STM32Cube function pack
- STBLESensor: iOS and Android demo apps
- BlueST-SDK: iOS and Android software development kit
- Compatible with STM32 ecosystem through STM32Cube support
- RoHS and WEEE compliant
- The development kit package includes:
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 20 Nov 2018 | 20 Nov 2018 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 20 Nov 2018 | 20 Nov 2018 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 20 Nov 2018 | 20 Nov 2018 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-GPT001V1 | NRND | CARD | 工业 | Ecopack2 | Yes | - | - | |
