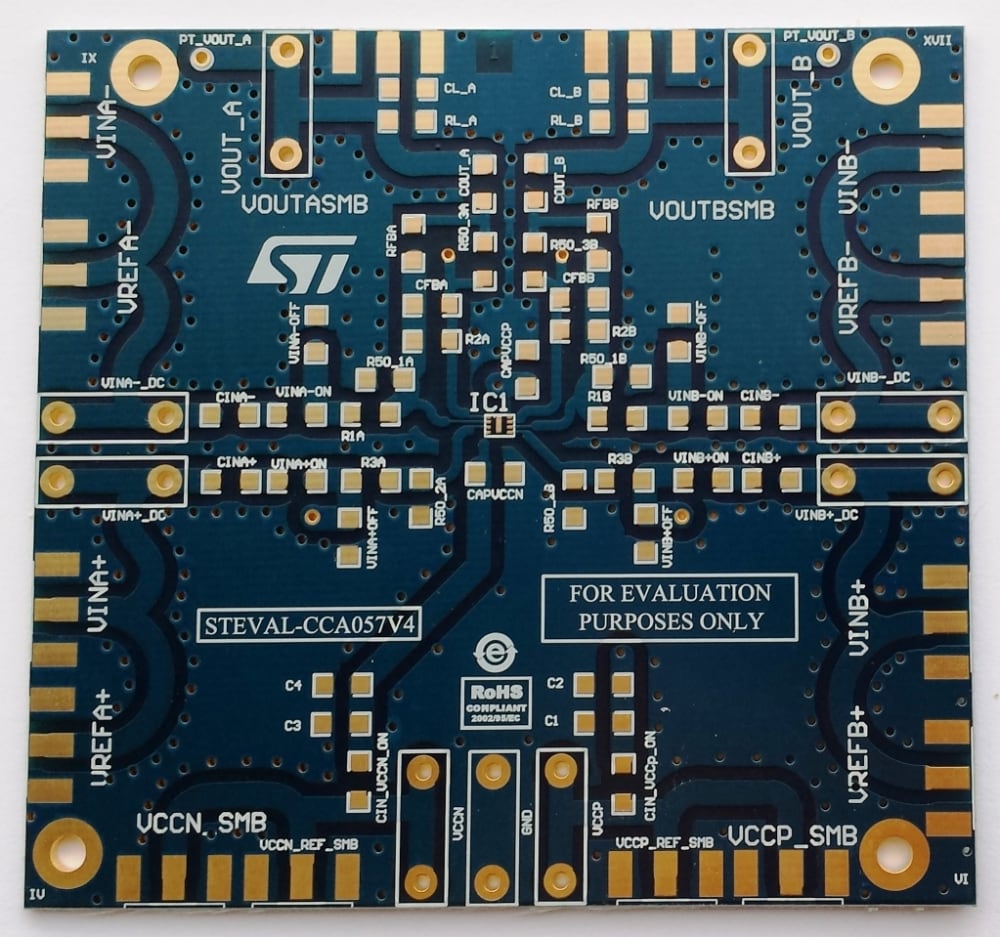

The STEVAL-CCA057V4 evaluation board is designed to help customers quickly prototype new dual op amp circuits in a DFN8-EP package and reduce design time.
It can be used with almost any STMicroelectronics dual op amp in various configurations and applications.
The STEVAL-CCA057V4 is a bare board. There are no components or amplifiers soldered on the board. The components must be ordered separately.
-
性能一览
- The board with its components allow it to be configured as:
- Sallen-key filter
- Instrument amplifier
- AC-coupled circuit
- Out-of-loop compensation circuit
- In loop compensation circuit
- Transimpedance amplifier
- Gain amplifier
- Numerous other possible configurations
