产品概述
描述

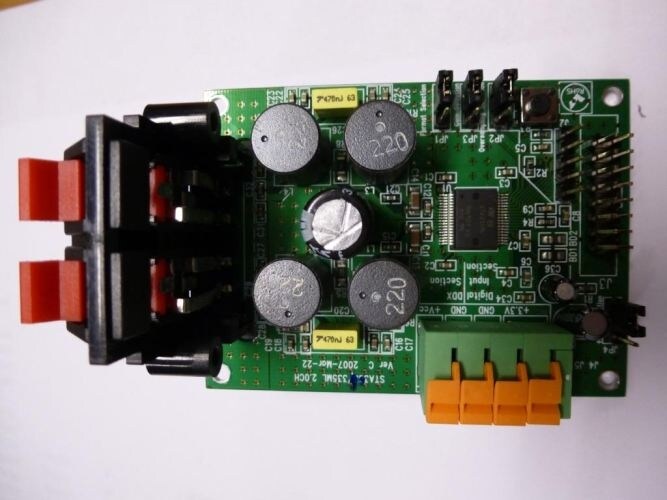

The STEVAL-CCA048V1 demonstration board is based on the STA333ML Sound Terminal® digital amplifier. It provides full digital audio streaming to the speakers and offers cost effectiveness, low power dissipation, sound enrichment and DDX® power output stage.
To evaluate the STA333ML, the STEVAL-CCA048V1 does not require a microcontroller, and it accepts the universal I2S format. However, the board may be connected to APWlink (STEVAL-CCA035V1) as I2S interface.
-
所有功能
- 2 x 20 W into 8 Ω = 18 V
- 4.5 V to 20 V operating supply voltage range
- 23 V absolute maximum rating
- DDX®100 dB dynamic range
- Selectable 32 kHz to 48 kHz input sample rates
- Automatic zero-detect mute
- 2-channel I2S input data interface
- 2 volume selection (0 and +24 dB)
- 2 master clock selection (256 or 364 * fs)
- 2 digital format selection (I2S and LSB)
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
