产品概要
描述

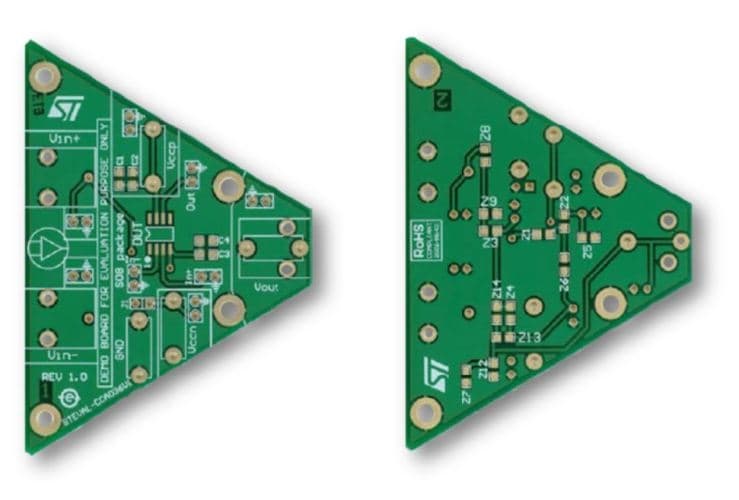

The STEVAL-CCA036V1 demonstration board is designed to help characterize single operational amplifiers in SO8 packages.
With this board, the most common op-amp based circuits can be achieved.
The board is designed for surface-mounted components and can be used to perform onboard characterization prior to the integration of STMicroelectronics’ products in your designs. Resistor and capacitor footprints are implemented for the 0805 series. A set of two decoupling capacitors have been implemented on both power supply pins so as to benefit from the maximum performances of ST products. In order to reject a wide range of frequencies, 10 nF and 4.7 μF are good values for these capacitors.
-
性能一览
- This demonstration board with its components allow it to be configured as:
- Low-pass Sallen-Key circuit
- High-pass Sallen-Key circuit
- Differential amplifier
- AC-coupled circuit
- In-loop compensation circuit
- Out-of-loop compensation circuit
- Numerous other possible configurations not described here
- RoHS compliant
