产品概要
描述

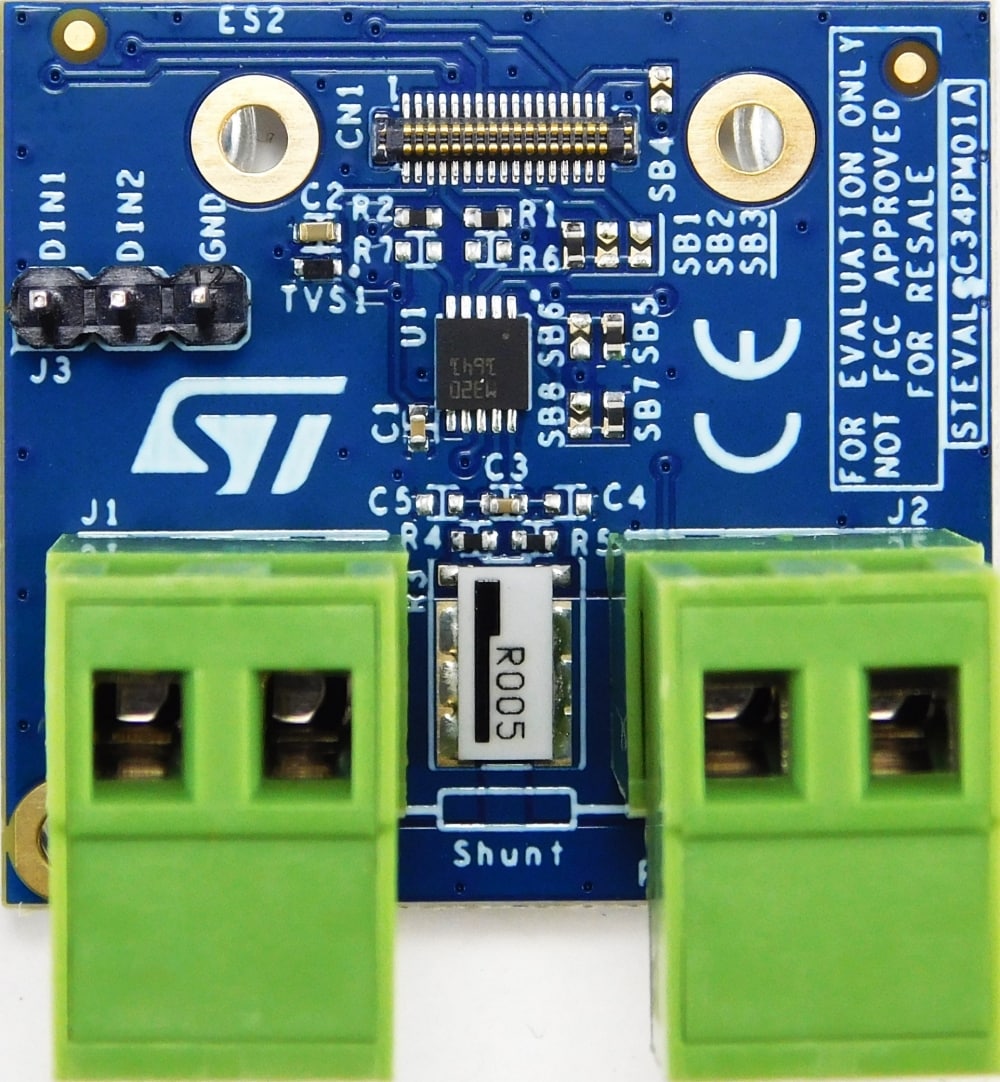

The STEVAL-C34KPM1 evaluation kit allows the user to evaluate the performance of the TSC1641, 16-bit, high precision current and power monitor with an MIPI I3C/I2C interface.
The board can measure: voltage up to 60 V, a load current up to 10 A delivered power, and temperature based on the dual channel power monitor.
The current measurement can be high-side, low-side and bidirectional. Analog filters can be implemented on the board.
This expansion kit is compatible with the STWIN.box (STEVAL-STWINBX1), and it is supported by the high speed datalogger function pack (FP-SNS-DATALOG2).
-
性能一览
- The kit includes:
- STEVAL-C34PM01 expansion board with TSC1641 and 34 pins board-to-fpc connector
- A 34-pin flex cable
- Ideal plug-in for the STEVAL-STWINBX1 evaluation board
- TSC1641 high-precision current, voltage, power, and temperature monitoring analog front-end (AFE)
- 16 bit dual channel for current, voltage, and power monitoring
- Temperature monitoring
- Simple digital connection with I²C up to 1 MHz and compatible with MIPI I3C up to 12.5 MHz
- From 128 µs to 32.768 ms total conversion time
- 2.7 to 3.6 V power supply
- Alert signals generated in case of over/under voltage, over/under current, overpower or over temperature
- Load voltage sensing from 0 to 60 V
- 3.3 V power supply input
- The kit includes:
