产品概述
描述

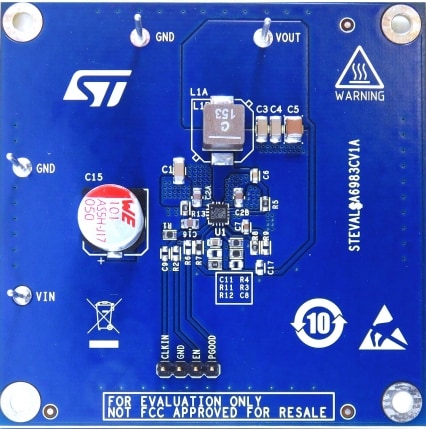

The STEVAL-A6983CV1 is an easy to use synchronous monolithic step-down regulator capable of delivering up to 3 A DC to the load.
The wide input voltage range makes the device suitable for a broad range of applications.
The STEVAL-A6983CV1 is based on a peak current mode architecture and is packaged in a QFN16 (3 x 3 mm) with internal compensation thus minimizing design complexity and size.
The device is designed for applications active during car parking, so it maximizes the efficiency at the light-load with the controlled output voltage ripple.
The STEVAL-A6983CV1 allows the switching frequency to be selected in the 200 kHz - 2.3 MHz range with optional spread spectrum for improved EMC.
The EN pin provides enable/disable functionality. The typical shutdown current is 2 μA when disabled.
As soon as the EN pin is pulled-up the device is enabled and the internal 1.3 ms soft-start takes place.
The STEVAL-A6983CV1 features Power Good opencollector that monitors the FB voltage.
Pulse by pulse current sensing on both power elements implements an effective constant current protection and thermal shutdown prevents thermal run-away.
-
所有功能
- AECQ100 Grade 1 qualified
- Operating temperature range: -40 to +150 °C for Tj
- 3.5 to 38 V operating input voltage
- Output voltage from 0.85 V to VIN
- 3A DC output current
- 25μA operating quiescent current
- Internal compensation network
- High efficiency at light loads
- 2μA shutdown current
- Internal soft-start
- High voltage VIN compatible enable
- Output overvoltage protection
- Output voltage sequencing
- Thermal protection
- 200 to 2.2 MHz programmable switching frequency. Stable with low ESR capacitor min 22 µF
- Optional spread spectrum for improved EMC
- Power good
- QFN16 (3 x 3mm) package
