产品概述
主要优势
描述

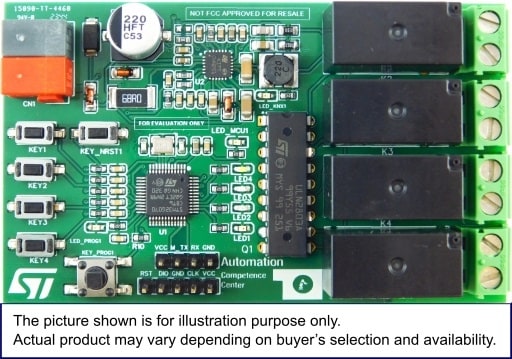

This STEVAL-4KNXDVCB is a designed board with STKNX as KNX device transceiver, low power STM32G070CB as main controller, ULN2803A as relay driver chip.
The STEVAL-4KNXDVCB runs with the KNX protocol.
With the use of STKNX, KNX signals can be transmitted between KNX BUS and MCU.
The microcontroller can be programmed by a dedicated SWD 5-pin connector.
The ULN2803A can provide an output voltage 50 V and current 500 mA.
This STEVAL-4KNXDVCB can use ETS software to set parameters to enable manual control and adjust action delay time of each channel.
Important:
These evaluation boards are custom designed and built, in small quantities, according to specific requests from customers and are destined for evaluation and testing of ST products in a research and development setting. Please contact ST to provide your specific requests and get your custom built board(s).
-
所有功能
- Input DC voltage: 21-32 VDC (KNX Bus)
- KNX 4 channels switch on/off input
- KNX 4 channels Relay output
- 4 keys and 4 LEDs indicator
- 4 Relays parameter:12 V, 500 mW, Magnetic holding
- BUS control and manual control
- Adjustable parameter of action delay of each channel
特别推荐
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-4KNXDVCB | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-4KNXDVCB
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-4KNXDVCB | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-4KNXDVCB 批量生产
